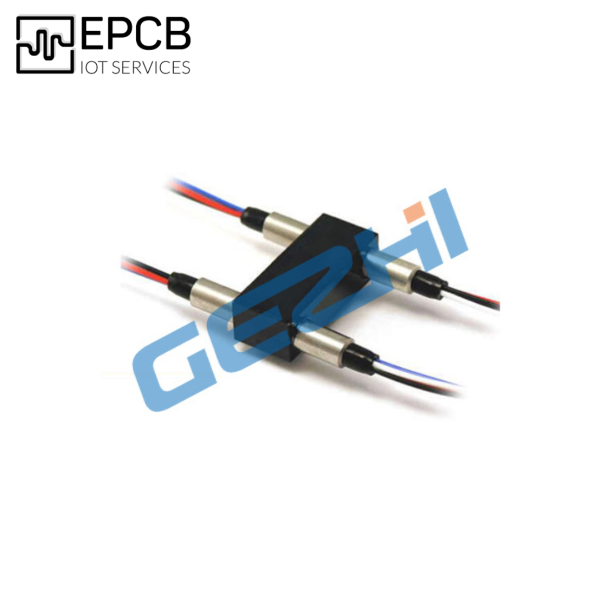

Quad 2×2 Bypass Optical Switches
Description
The  Quad 2×2 Bypass Fiber optic switch integrated 2 dual 2×2 bypass switches in a single compact format. It is designed for 40G/100G transceiver bypass application. The device connects optical channels by redirecting incoming optical signals into selected output fibers. This is achieved using a patented opto-mechanical configuration and activated via an electrical control signal. The latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability and an unmatched low cost. The switch is bidirectional.
Features
Compact design, Miniature size
Short switching time
Bi-directionalLow optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range

Applications
R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Technical Parameter
Parameters
Unit
Specifications
Operating Wavelength
nm
1260~1620(SM)、850(MM)
Insertion Loss
dB
≤1.1
Wavelength Dependent Loss
dB
≤0.30
Polarization Dependent Loss
dB
≤0.10
Temperature Dependent Loss
dB
≤0.25
Return Loss
dB
SM≥50 MM≥30
Cross Talk
dB
SM≥55 MM≥50
Switch Time
ms
≤8
Repeatability
dB
≤±0.02
Durability
times
≥107
Operating Voltage
V
5
Switch Type

Non-Latching/Latching
Operating Temperature
℃
－20~＋70
Storage Temperature
℃
－40~＋85
Optical Power
mW
≤500
Dimension
mm
28L×27W×8.0H

Pins
Type
Pin
Electric Drive
Status Sensor
Quad 2×2 Bypass

Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Latching
1→1’, 2→2’
3→3’, 4→4’
5→7’, 6→8’
—
V+
Close
Open
Open
Close
1→3’, 2→4’
5→5’, 6→6’
7→7’, 8→8’
V+
—
Open
Close
Close
Open
Non-latching
1→1’, 2→2’
3→3’, 4→4’
5→7’, 6→8’
—
—
Close
Open
Open
Close
1→3’, 2→4’
5→5’, 6→6’
7→7’, 8→8’
V+
GND
Open
Close
Close
Open

Optical Route
Dimension:

Ordering Information
Type
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
Quad2x2B
SM=SM
MM=MM
85=850nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
