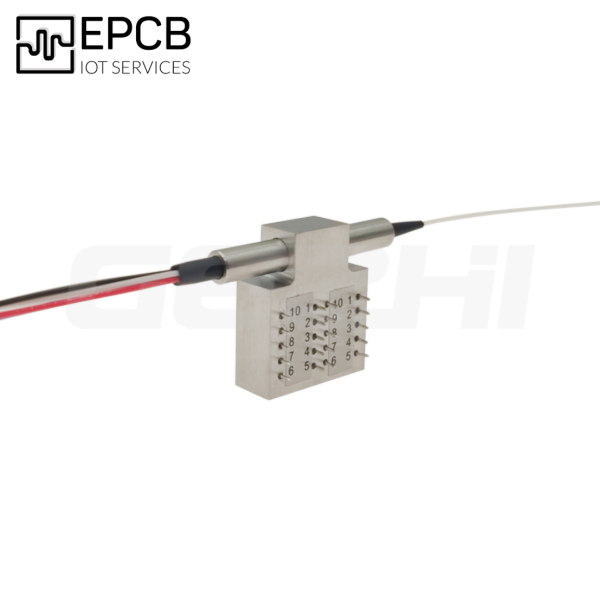

1x4 T-Type Mechanical Optical Switch

GEZHI Series 1x4 T Type fiber optical switches connect optical channels by directing or blocking an incoming optical signal into the output fiber. A latching version preserves the selected optical patch after the drive signal has been off, while the non-latching versions default to either the open or closed state when power is off.
This 1x4 Mechanical Optical Switch has an integrated electrical position sensor. It is based on advanced design significantly to reduce moving part position sensitivity, and with High stability, Reliability, and low insertion loss.

Features
  • Low Insertion Loss
  • Low Optical Distortions
  • High Reliability
  • Epoxy-Free Optical Path
Application
  • Channel Blocking
  • System Monitoring
  • Configurable Add/Drop
  • Instrumentation

Performance
1x4 T Type Switch
Unit
Typical
Operation Wavelength
nm
850nm or 1310/1490/1550nm
Insertion Loss 1
dB
<0.8
Wavelength Dependent Loss
dB
<0.2
Polarization Dependent Loss
dB
<0.2
Return Loss
dB
SM: >55  MM:>40
Cross Talk
dB
SM: >55  MM:>40
Switching Time
ms
Typical: 4    Max:10
Repeatability
dB
<±0.02
Durability
Cycles
>10 Million
Switching Type

Latching / Non-Latching
Optical Power Handling
mW
<500mW
Operating Voltage
VDC
3V or 5V
Operating Temperature
℃
-5~+70
Storage Temperature
℃
-40~+85
Fiber Type
/
SM/MM Fiber
Package Dimension
mm
27L x 23W x 8.2H

Electrical Driving
Type
State
Optical Route
Electric Drive
Status Sensor
Relay 1 (Pin)
Relay 2 (Pin)
Relay 1 (Pin)
Relay 2 (Pin)
1
5
6
10
1
5
6
10
2-3
3-4
7-8
8-9
2-3
3-4
7-8
8-9
1x4
A
COM-P1 Black
-
-
GND
V+
V+
GND
-
-
close
open
open
close
open
close
close
open
Latching
B
COM-P2 Red
V+
GND
-
-
-
-
GND
V+
open
close
close
open
close
open
open
close
C
COM-P3 Blue
-
-
GND
V+
-
-
GND
V+
close
open
open
close
close
open
open
close
D
COM-P4 White
V+
GND
-
-
V+
GND
-
-
open
close
close
open
open
close
close
open
Non-Latching
A
COM-P1 Black
-
-
-
-
V+
-
-
GND
close
open
open
close
open
close
close
open
B
COM-P2 Red
V+
-
-
GND
-
-
-
-
open
close
close
open
close
open
open
close
C
COM-P3 Blue
-
-
-
-
-
-
-
-
close
open
open
close
close
open
open
close
D
COM-P4 White
V+
-
-
GND
V+
-
-
GND
open
close
close
open
open
close
close
open

Route State

Dimension


Ordering Information
Type
Wavelength
Control   Model
Voltage
Power
Fiber Type
Fiber Diameter
Fiber Length
Connector
14T=1x4
780=780nm
980=980nm
850=850nm
1310=1310nm
1550=1550nm
13/15=1310/1550nm
S=Specify
L=Latching
N=Non-Latching
3=3V
5=5V
05=500mW
01=1W
02=2W
05=5W
10=10W
S=Specify
SM=SMF-28
M5= MM 50/125
M6=MM 62.5/125
S=Specify
25=250um
09=900um
S=Specify
05=0.5m
10=1m
15=1.5m
S=Specify
00=None
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
STP=ST/UPC
STA=ST/APC
LP=LC/UPC
LA=LC/APC
S=Specify
