2x2A Mechanical Optic Switch

  • Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Tiêu đề
  • Liên hệ

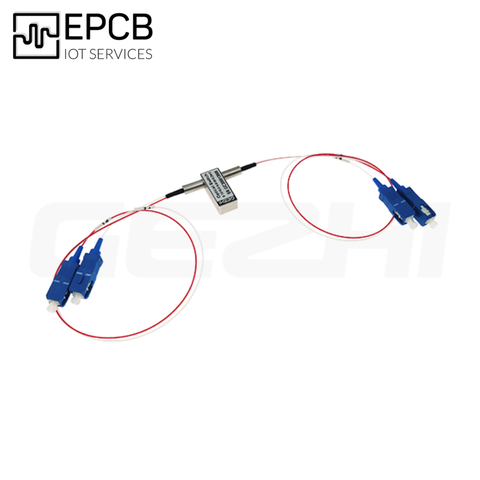

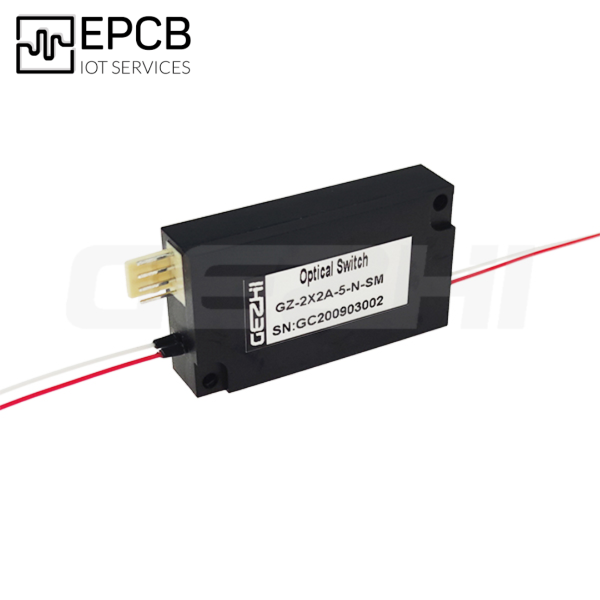

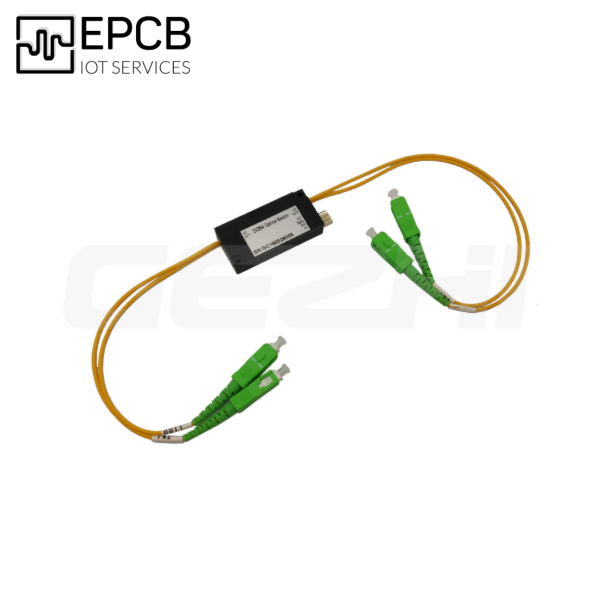

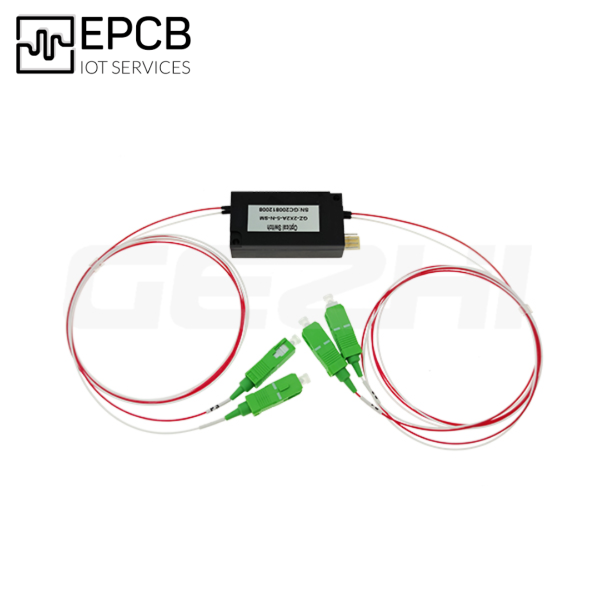

2x2A Mechanical Optic Switch
Description
GEZHI Photonics’ 2×2 A type Mechanical Fiber Optic Switch (2X2A Optical Switch) supports all wavelengths at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. Optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection, Network Test System, and Instrumentations.
Features
Compact design, Miniature size
Short switching time
Bi-directionalLow optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range

Applications
R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Technical Parameter
Parameters
Unit
GZ-FSW-2×2A
Wavelength Range
nm
12601650
Operating Wavelength
nm
1310/1550
Insertion Loss
dB
Typ:0.8  Max:1.0
Return Loss
dB
≥50
Crosstalk
dB
≥60
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
v
3.0 or 5.0
Lifetime
times
≥107
Switch Time
ms
≤8
Transmission Power
mW
≤500
Operating Temperature
-20+70
Storage Temperature
-40+85
Weight
g
25
Dimension
mm
(L)55.0×(W)26.0×(H)10.0

2×2A Optical Switch – Pin Configurations

Type
State
Optical Route
Electric Drive
Status Sensor
2×2A


Pin 1
Pin 2
Pin 3-4
Non-latching
A
P1-P3P2-P4
V+
GND
Open
B
P1-P4P2-P3
Close

2×2A Optical Switch – Optical Route

State A
State B

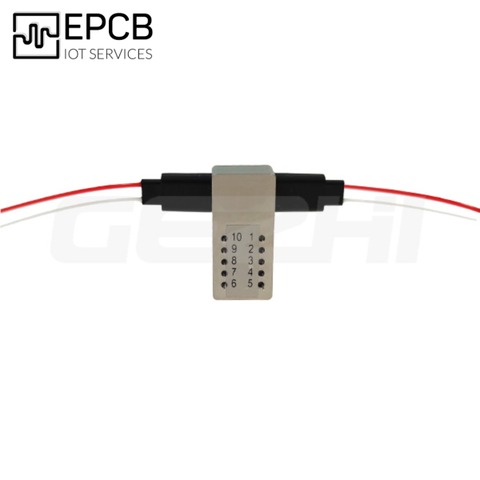

2×2A Optical Switch - Micro Optical Switch
2×2A Optical Switch - Micro Optical Switch

Dimensions

Electric


Specifications
Voltage
Current
Resistance
5V   non-latching
4.5~5.5 V
25~31 mA
178 Ω
3V   non-latching
2.7~3.3 V
42~51 mA
65 Ω

Ordering Information
X
XX
X
X
X
XX
X
XX
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
