1x1 Optical Switch 1x1 Optical Switch 1x1 Optical Switch
1x1 Optical Switch
1x1 Optical Switch
1x1 Optical Switch

1x1 Optical Switch

  • Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Tiêu đề
  • Liên hệ

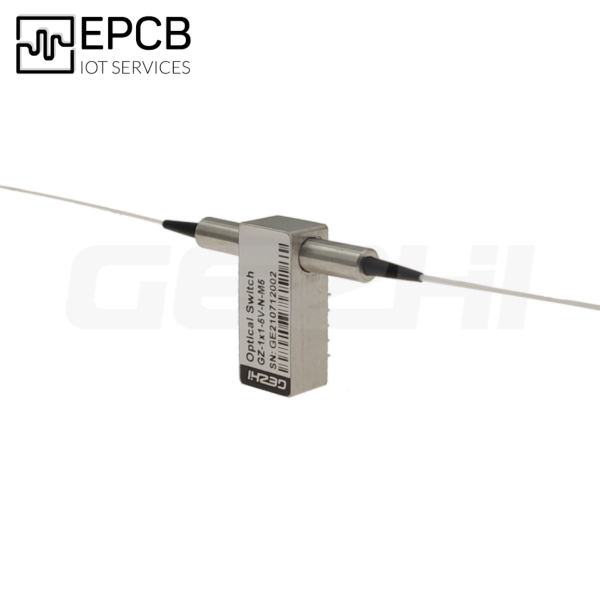

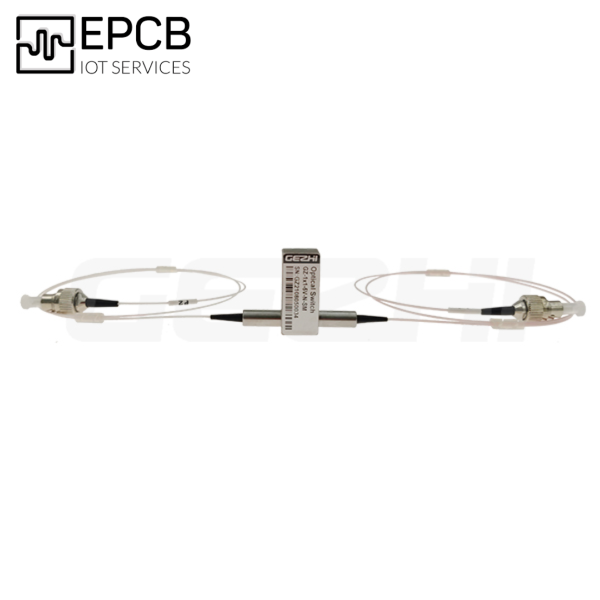

Gezhi 1x1 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signal into 1 output fiber. This is achieved using an opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.
Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Application
WDM Network
Line Monitoring
Telecommunication
Testing Instrument

Features
  • Low Insertion loss
  • Wide Wavelength Range
  • Low Crosstalk
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching and Non-latching

Applications
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation

Technical Parameter
Parameters
Unit
GZ-FSW-1×1
Wavelength Range
nm
850±40 /1300±40
1260~1650
Operating Wavelength
nm
850 / 1300
1310/1550
Insertion Loss
dB
Typ:0.5  Max:0.8
Typ:0.5  Max:0.8
Return Loss
dB
MM≥30   SM≥50
Crosstalk
dB
MM≥65   SM≥70
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power supply
v
3.0 or 5.0
Lifetime
Time
≥107
Switch Time
ms
≤8
Transmission Power
mW
≤500
OperatingTemperature
℃
-20~+70
Storage Temperature
℃
-40~+85
Weight
g
16
Dimension
mm
(L)27.0×(W)12.0×(H)8.2

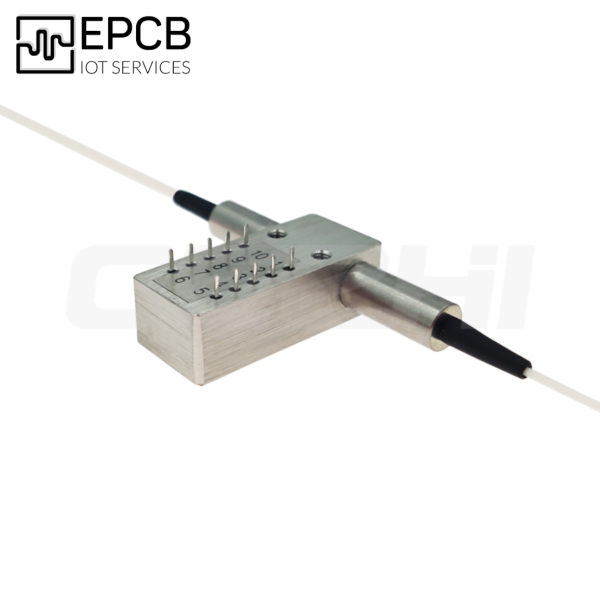

Pins
Type
Pin
Electric Drive
Status Sensor
1x1

Pin 1
Pin 5
Pin 6
Pin 10
Pin 2-3
Pin 3-4
Pin 7-8
Pin 8-9
Latching
Light close
--
--
GND
V+
Close
Open
Open
Close
P1-P2
V+
GND
--
--
Open
Close
Close
Open
Non-latching
Light close
--
--
--
--
Close
Open
Open
Close
P1-P2
V+
--
--
GND
Open
Close
Close
Open
Optical Route
Electric
Specifications
Voltage
Current
Resistance
5V   Latching
4.5~5.5
≥50mA
 125Ω
5V   Non-latching
4.5~5.5
≥40mA
175Ω
3V   Latching
2.7~3.3
≥70mA
50Ω
3V   Non-latching
2.7~3.3
≥50mA
70Ω

 Ordering Information
Type
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
1x1
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized
