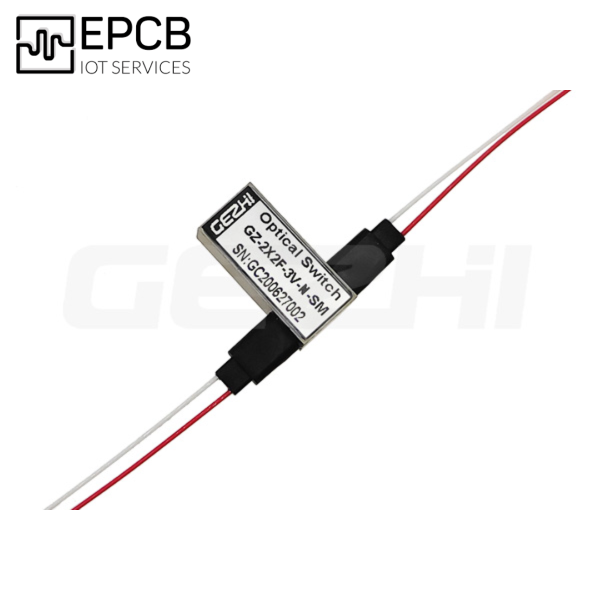

 2x2 Full Opto-Mechanical Optical Switches
Description
The 2x2F Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using an opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors. Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Features
l Low Insertion Loss
l Low Crosstalk
l High Stability, High Reliability
l Epoxy-free on Optical Path
Application
l MAN
l R&D in Laboratory
l System Monitoring
l Configurable OADM

Technical Parameter
Parameters

Unit
GZ-2×2F
Wavelength Range
nm
850±40 / 1300±40
1260~1650
Operating Wavelength
nm
850 / 1300
1310/1550
Insertion Loss
dB
Typ:1.0  Max:1.2
Typ:0.8  Max:1.0
Return Loss
dB
MM≥30   SM≥50
Crosstalk
dB
MM≥35   SM≥55
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power supply
v
3.0 or 5.0
Lifetime
Time
≥107
Switch Time
ms
≤8
Transmission Power
mW
≤500
OperatingTemperature
℃
-20~+70
Storage Temperature
℃
-40~+85
Weight
g
16
Dimension
mm
(L)27.0×(W)12.0×(H)8.0

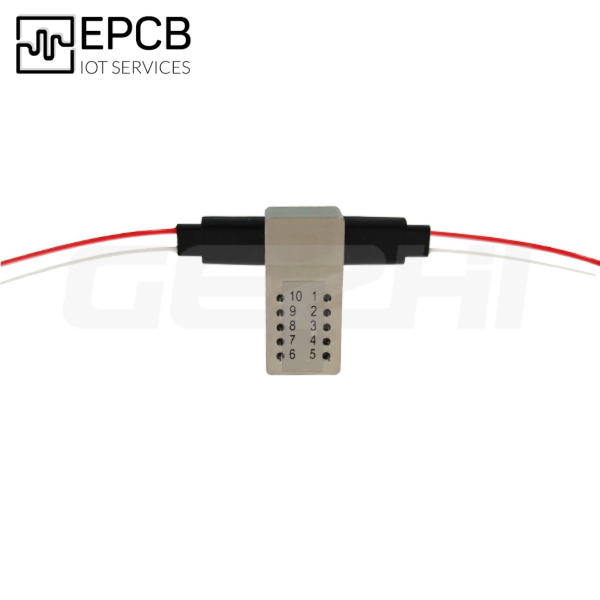

Pins
Type
Optical Route
Electric Drive
Status Sensor
2×2F
channel
Pin 1
Pin 5
Pin 6
Pin 10
Pin 2-3
Pin 3-4
Pin 7-8
Pin 8-9

Latching

P1-P4、P2-P3
--
--
GND
V＋
Close
Open
Open
Close
P1-P3、P2-P4
V＋
GND
--
--
Open
Close
Close
Open

Non-latching

P1-P4、P2-P3
--
--
--
--
Close
Open
Open
Close
P1-P3、P2-P4
V＋
--
--
GND
Open
Close
Close
Open

Optical Route

Electric
Specification
Voltage
Current
Resistance
5V Latching
4.5~5.5V
36~44mA
125Ω
5V Non-Latching
4.5~5.5V
26~32mA
175Ω
3V Latching
2.7~3.3V
54~66mA
50Ω
3V Non-Latching
2.7~3.3V
39~47mA
70Ω

Mechanical Drawing

Ordering Information
GZ
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
2x2F
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
S=Specify
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
S=Specify
25=250um
90=900um
20=2.0mm
S=Specify
05=0.5m
10=1.0m
S=Specify
00=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC
S=Specify
