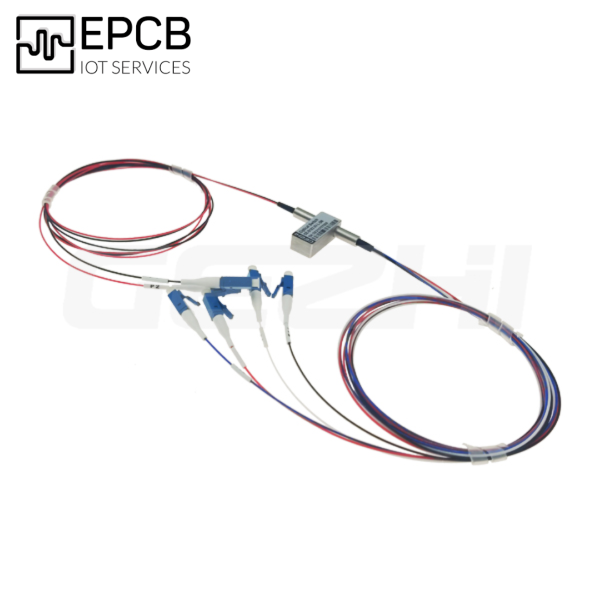

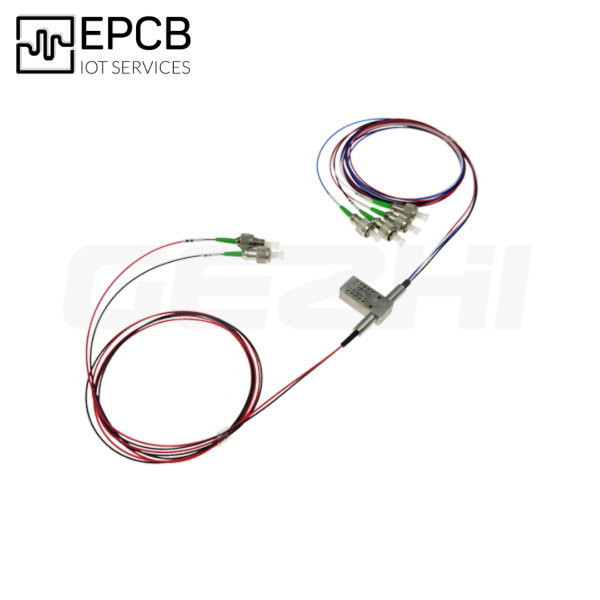

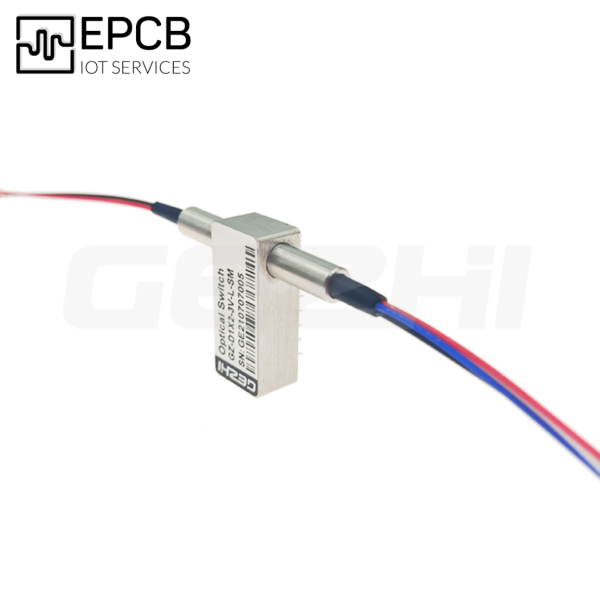

Dual 1x2 Opto-Mechanical Optical Switches
( 2x4 Fiberoptic Switch )
Description
The D1x2 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 4 output fibers. This is achieved using an opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors. Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
Features Low Insertion LossWide Wavelength RangeLow CrosstalkHigh Stability, High ReliabilityEpoxy-free on Optical PathLatching and Non-latching | Applications Metropolitan Area NetworkR&D in LaboratorySystem MonitorConfigurable OADMComponent testing |
Technical Parameter
Parameters | GZ-FSW-D1x2 | ||
Wavelength Range | nm | 670~980 | 1260~1650 |
Testing Wavelength | nm | 850±40/1300±40 | 1310/1550 |
Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
Return Loss | dB | MM≥30 SM≥50 | |
Crosstalk | dB | MM≥35 SM≥55 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
TDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power supply | v | 3.0 or 5.0 | |
Lifetime | time | ≥107 | |
Switch Time | ms | ≤8 | |
Transmission Power | mw | ≤500 | |
Operation Temperature | ℃ | -20~+70 | |
Storage Temperature | ℃ | -40~+85 | |
Weight | g | 16 | |
Dimension | mm | (L)27×(W)12×(H)8.2 (±0.2mm) Customization is available |
Pins
Control Model | Optical Path | Electric Drive | Status Sensor | |||||||
D1×2 | Light Pin | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | |
Latching | P1-P2 | P1’-P2’ | -- | -- | GND | V+ | Close | Open | Open | Close |
P1-P3 | P1’-P3’ | V+ | GND | -- | -- | Open | Close | Close | Open | |
Non-latching | P1-P2 | P1’-P2’ | -- | -- | -- | -- | Close | Open | Open | Close |
P1-P3 | P1’-P3’ | V+ | -- | -- | GND | Open | Close | Close | Open |
Optical Route
Electric
Specifications | Voltage | Current | Resistance |
5V Latching | 4.5~5.5 | 36~44mA | 125Ω |
5V Non-latching | 4.5~5.5 | 26~32mA | 175Ω |
3V Latching | 2.7~3.3 | 54~66mA | 50Ω |
3V Non-latching | 2.7~3.3 | 39~47mA | 70Ω |
Mechanical Dimensions (Unit: mm)
Ordering Information
X | XX | X | X | X | XX | X | XX |
Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM M=MM | 85=850nm 13/15=1310/1550nm X=Others | 3=3V 5=5V | L=Latching N=Non- Latching | 5=50/125 6=62.5/125 9=9/125 X=Others | 25=250um 90=900um 20=2.0mm 30=3.0mm X=Others | 1=1m 2=1.5m X=Others | 0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
