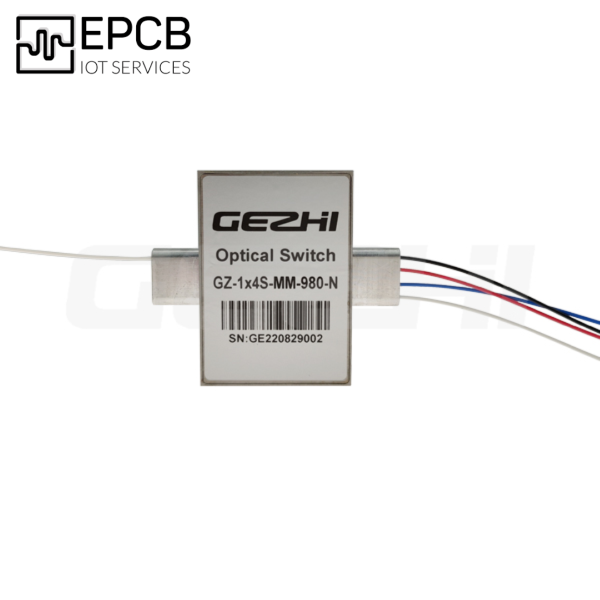

1x4S Optical Switch 105/125um fiber
1x4S Optical Switch 105/125um fiber

1x4S Optical Switch 105/125um fiber

  • Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Tiêu đề
  • Liên hệ

This 1x4S Optical Switches from GEZHI Photonics uses 105/125um large core fiber, which supports 780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm, or customized wavelength. The 105/125um fiber 1x4 Optical Switches have low insertion loss, High stability and Reliability, and High Cross talk. Which is widely used in Medical, Fiber sensors, Research, Laser, Aerospace, etc.

Features
  • Low insertion Loss
  • High Channel Isolation
  • High Stability, High Reliability
  • Latching or Non-latching
Applications
  • Medical
  • Fiber Sensor
  • Laser
  • Research

Performance
Parameters


GZ-1x4S
Operating Wavelength
nm
780, 980, 1060, 1310,1550 etc
Insertion Loss
dB
≤1.5
Wavelength Dependent Loss
dB
≤0.40
Polarization Dependent Loss
dB
≤0.05
Temperature Dependent Loss
dB
≤0.20
Return Loss
dB
SM≥50           MM≥30
Cross Talk
dB
SM≥55           MM≥35
Switch Time
ms
≤8
Repeatability
dB
≤±0.02
Durability
times
≥107
Operating Voltage
V
3 or 5
Switch Type

Non-Latching/Latching
Operating Temperature
℃
－20~＋70
Storage Temperature
℃
－40~＋85
Optical Power
mw
500, 1000, 2000, 5000, 10000 etc
Dimension
mm
52.7.0L×37.2W×10.0H


Optical Route


Pins:
Non-latching type
Type
Optical
Route

Relay
Electric Drive
State Sensor
1x4S
Pin 1
Pin 5
Pin 6
Pin 10
Pin 2‐3
Pin 3‐4
Pin 7‐8
Pin 8‐9
Non-Latching
COM‐ Port 1(Black)
Relay1
V＋
‐‐
‐‐
GND
Open
Close
Close
Open
Relay2
V＋
‐‐
‐‐
GND
Open
Close
Close
Open
Relay3
V＋
‐‐
‐‐
GND
Open
Close
Close
Open
COM‐ Port 2 (red)
Relay1
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close
Relay2
V＋
‐‐
‐‐
GND
Open
Close
Close
Open
Relay3
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close
COM‐ Port 3(blue)
Relay1
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close
Relay2
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close
Relay3
V＋
‐‐
‐‐
GND
Open
Close
Close
Open
COM‐ Port 4(White)
Relay1
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close
Relay2
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close
Relay3
‐‐
‐‐
‐‐
‐‐
Close
Open
Open
Close

Latching type
Type
Optical
Route

Relay
Electric   Drive
State   Sensor
1x4S
Pin 1
Pin 5
Pin 6
Pin 10
Pin 2‐3
Pin 3‐4
Pin 7‐8
Pin 8‐9
Latching
COM‐ Port 1(Black)
Relay1
V＋
GND
‐‐
‐‐
Open
Close
Close
Open
Relay2
V＋
GND
‐‐
‐‐
Open
Close
Close
Open
Relay3
V＋
GND
‐‐
‐‐
Open
Close
Close
Open
COM‐ Port 2 (red)
Relay1
‐‐
‐‐
GND
V＋
Close
Open
Open
Close
Relay2
V＋
GND
‐‐
‐‐
Open
Close
Close
Open
Relay3
V＋
GND
‐‐
‐‐
Open
Close
Close
Open
COM‐ Port 3(blue)
Relay1
‐‐
‐‐
GND
V＋
Close
Open
Open
Close
Relay2
‐‐
‐‐
GND
V＋
Close
Open
Open
Close
Relay3
V＋
GND
‐‐
‐‐
Open
Close
Close
Open
COM‐ Port 4(White)
Relay1
‐‐
‐‐
GND
V＋
Close
Open
Open
Close
Relay2
‐‐
‐‐
GND
V＋
Close
Open
Open
Close
Relay3
‐‐
‐‐
GND
V＋
Close
Open
Open
Close

Dimension

Ordering Information
GZ
Mode
Wavelength
Voltage Type
Control Model
Working Power
Fiber Type
Fiber Diameter
Fiber Length
Connector
1x4S
S=SM
M=MM
780=780nm
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
980=980nm
1060=1060nm
S=Specify
3=3V
5=5V
L=Latching
N=Non- Latching
N=500mw
1=1W
2=2W
5=5W
10=10W
S=Specify
5=50/125
6=62.5/125
9=9/125
1=105/125
S=Specify
25=250um
90=900um
20=2.0mm
S=Specify
05=0.5m
10=1.0m
S=Specify
00=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC
S=Specify
