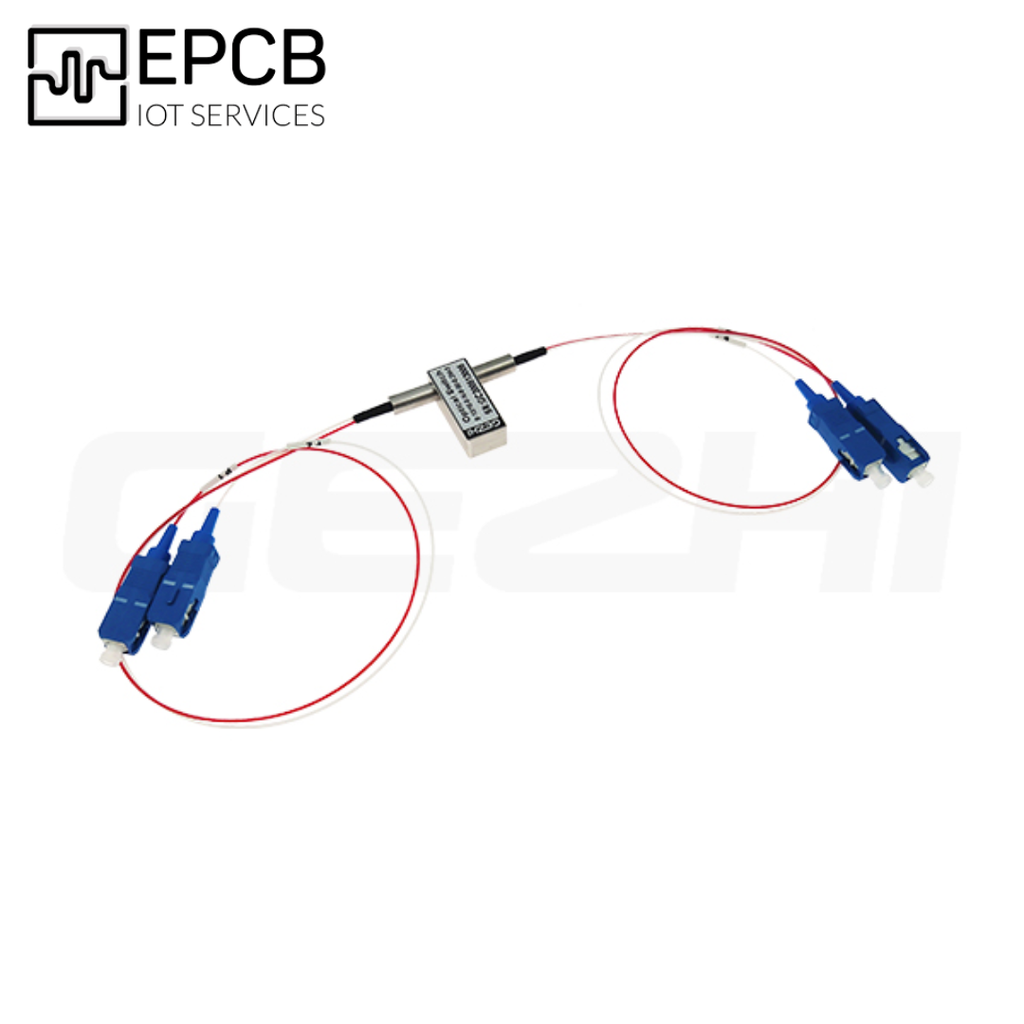

2x2 Bypass Optical Switch
2x2 Bypass Optical Switch

2x2 Bypass Optical Switch

  • Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Tiêu đề
  • Liên hệ

2x2 Bypass Opto-Mechanical Optical Switches
The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using an opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors. Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Network switching
System monitoring
Channel Blocking
Module and System Integration
Metropolitan Area Network
Network protection and restoration

Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching

Applications
Network switching
System monitoring
Channel Blocking
Module and System Integration
Metropolitan Area Network
Network protection and restoration

Technical Parameter
Parameters
Unit
GZ-FSW-2×2B
Wavelength Range
nm
850±40/1300±40
1260～1650
Operating wavelength
nm
850/1300
1310/1550
Insertion Loss
dB
Typ:0.8  Max:1.2
Typ:0.6  Max:0.8
Return Loss
dB
MM≥30    SM≥50
Crosstalk
dB
MM≥35    SM≥55
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
v
3.0 or 5.0
Lifetime
times
≥107
Switch Time
ms
≤8
Transmission Power
mW
≤500
Operating Temperature
℃
-20～+70
Storage Temperature
℃
-40～+85
Weight
g
16
Dimension
mm
(L)27.0×(W)12.0×(H)8.2

Pins
Parameters
Pins
Electric Drive
Status Sensor
2×2B
Optical Path
1
5
6
10
2-3
3-4
7-8
8-9
Non-latching
P1-P3
--
--
--
--
Close
Open
Open
Close
P1-P4、P2-P3
V+
--
--
GND
Open
Close
Close
Open
latching
P1-P3
--
--
GND
V+
Close
Open
Open
Close
P1-P4 P2-P3
V+
GND
--
--
Open
Close
Close
Open

Optical Route

Electric
Control Model
Optical Path
Electric Drive
Status Sensor
2×2B

1
5
6
10
2-3
3-4
7-8
8-9
Latching
P1-P3
--
--
GND
V+
Close
Open
Open
Close
P1-P4, P2-P3
V+
GND
--
--
Open
Close
Close
Open
Non-latching
P1-P3
--
--
--
--
Close
Open
Open
Close
P1-P4, P2-P3
V+
--
--
GND
Open
Close
Close
Open

Ordering Information
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
