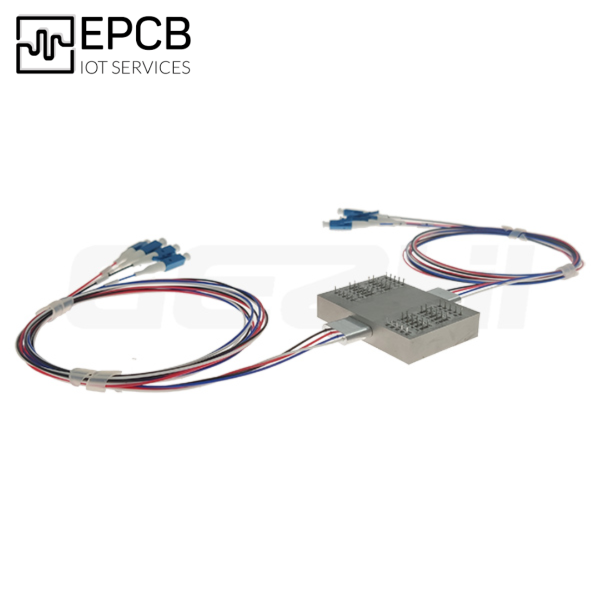

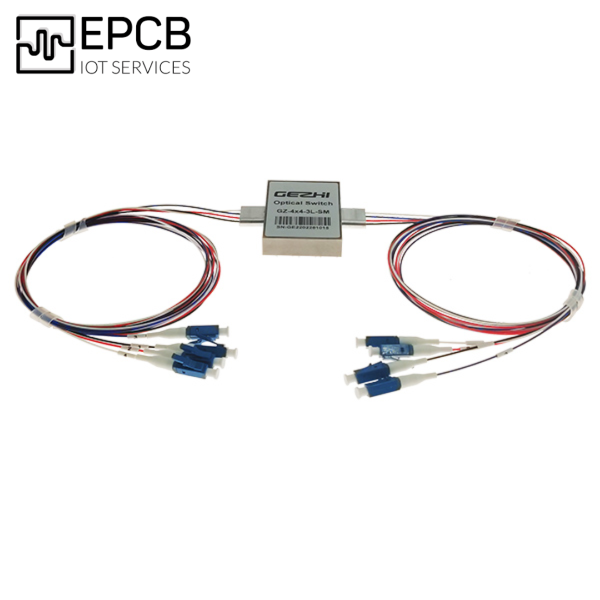

4×4 Optical Switches

Description
GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) supports all wavelengths at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. Optical switches are widely used for Optical Networks, Protection, Transmitter and Receiver Protection, Network Test Systems and Instrumentations.
Features
Compact design, Miniature size
Short switching time
Bi-directionalLow optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range

Applications
R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Technical Parameter
Parameters

GZ-FSW-4×4
Operating Wavelength
nm
1260~1620(SM)、850(MM)
Insertion Loss
dB
≤1.0
Wavelength Dependent Loss
dB
≤0.40
Polarization Dependent Loss
dB
≤0.05
Temperature Dependent Loss
dB
≤0.20
Return Loss
dB
SM≥50 MM≥30
Cross Talk
dB
SM≥55 MM≥35
Switch Time
ms
≤8
Repeatability
dB
≤±0.02
Durability
times
≥107
Operating Voltage
V
3 or 5
Switch Type

Non-Latching/Latching
Operating Temperature
℃
－20~＋70
Storage Temperature
℃
－40~＋85
Optical Power
mW
≤500
Dimension
mm
52.7.0L×37.2W×10.0H

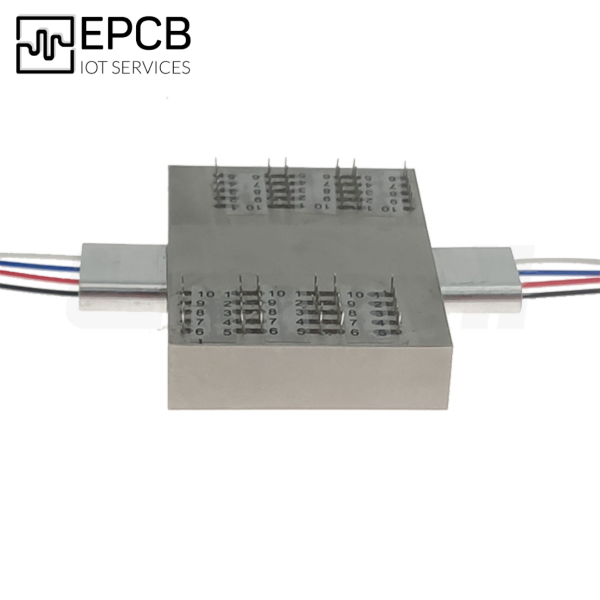

Pins

Optical Route
Dimension:

Ordering Information
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
S=SM
M=MM
85=850nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
