Octo 2×2 Bypass Optical Switches
Description
The Octo 2×2 Bypass Fiber optic switch integrated 4 dual 2×2 bypass switches in a single compact format. It is designed for a 40G/100G transceiver bypass application. The device connects optical channels by redirecting incoming optical signals into selected output fibers. The latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. The switch is bidirectional.
Features
Compact design, Miniature size
Short switching time
Bi-directionalLow optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range

Applications
R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Technical Parameter
Parameters
Unit
Specifications
Operating Wavelength
nm
1260~1620(SM)、850(MM)
Insertion Loss
dB
≤1.1
Wavelength Dependent Loss
dB
≤0.25
Polarization Dependent Loss
dB
≤0.05
Temperature Dependent Loss
dB
≤0.25
Return Loss
dB
SM≥50 MM≥30
Cross Talk
dB
SM≥55 MM≥50
Switch Time
ms
≤8
Repeatability
dB
≤±0.02
Durability
times
≥107
Operating Voltage
V
5
Switch Type

Non-Latching/Latching
Operating Temperature
℃
－20~＋70
Storage Temperature
℃
－40~＋85
Optical Power
mW
≤500
Dimension
mm
37.2L×21.5W×13.2H


Pins
Octo dual 2x2 bypass optical switch pin.jpg


Optical Route
Octo dual 2x2 bypass optical switch.jpg

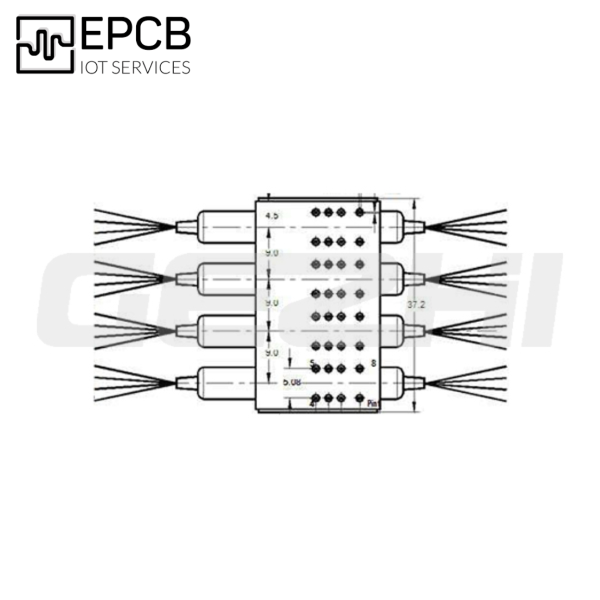

Dimension:
Octo dual 2x2 bypass optical switch dimension.jpg

Ordering Information
Type
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
OCTO-2x2B
S=SM
M=MM
85=850nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
