Mini 1x8 T type Optical Switch Mini 1x8 T type Optical Switch Mini 1x8 T type Optical Switch
Mini 1x8 T type Optical Switch
Mini 1x8 T type Optical Switch
Mini 1x8 T type Optical Switch

Mini 1x8 T type Optical Switch

  • Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Tiêu đề
  • Liên hệ

Description

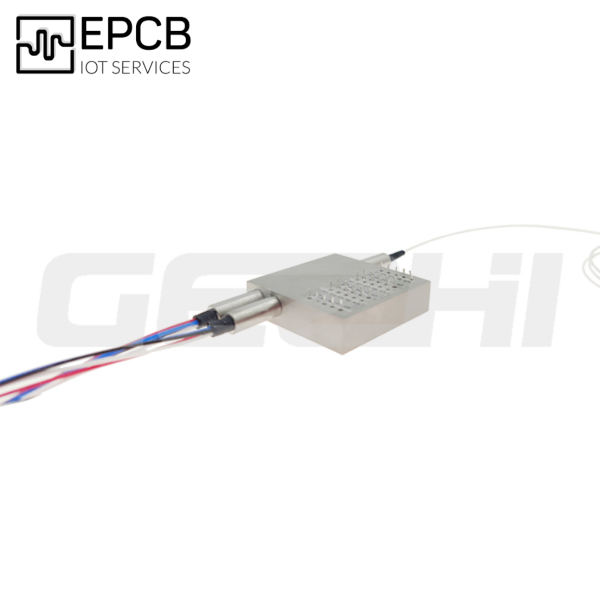

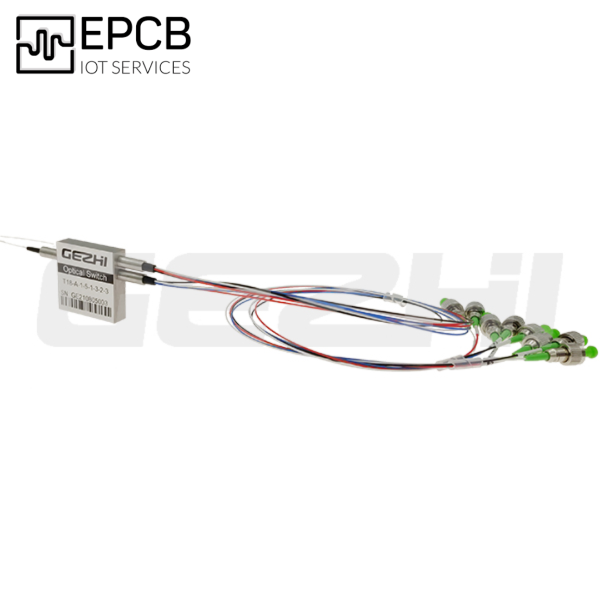

GEZHI Photonics' Mini 1×8 T type Mechanical Fiber Optic Switch (1×8 Optical Switch) supports all wavelengths at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. Optical switches are widely used for Optical Networks, Protection, Transmitter and Receiver Protection, Network Test Systems, and Instrumentations.

Features
Compact design, Miniature size
Short switching time
Bi-directional low optical distortions
Low cross-talk, Low Insertion Loss
Wide operating wavelength Range

Applications
R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Technical Parameter
Mini 1×8 T Type Switch
Unit
Typical
Operation Wavelength
nm
850nm or 1260~1650nm
Insertion Loss
dB
<1.0(MM), <1.2(SM)
Wavelength Dependent Loss
dB
<0.25(MM), <0.30(SM)
Polarization Dependent Loss
dB
<0.1
Return Loss
dB
MM:>35, SM: >55
Cross Talk
dB
MM:>40, SM: >55
Switching Time
ms
Typical: 4    Max:10
Repeatability
dB
<±0.02
Durability
Cycles
>10 Million
Switching Type

Latching / Non-Latching
Optical Power Handling
mW
<500mW
Operating Voltage
VDC
3V or 5V
Operating Temperature
℃
0~+70
Storage Temperature
℃
-40~+85
Fiber Type
/
SM/MM Fiber
Package Dimension
mm
35L x 35W x 9H

Optical Route

Pins

Dimensions


Electric
Specifications
Voltage
Current
Resistance
5V   latching
4.5~5.5 V
22.2（±10%） mA
202.5（±10%） Ω
5V   non-latching
4.5~5.5 V
31（±10%） mA
145（±10%） Ω
3V   latching
2.7~3.3 V
33.3（±10%） mA
90（±10%） Ω
3V   non-latching
2.7~3.3 V
46.7（±10%） mA
64.2（±10%） Ω

Ordering Information
X
X
XX
X
X
XX
XX
X
Type
Mode
Wavelength
Voltage Type
Control Model
Fiber Diameter
Fiber Length
Connector
1x8T
S=SM 9/125
M5=MM 50/125
M6=MM 62.5/125
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
25=250um
90=900um
05=0.5m
10=1.0m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
