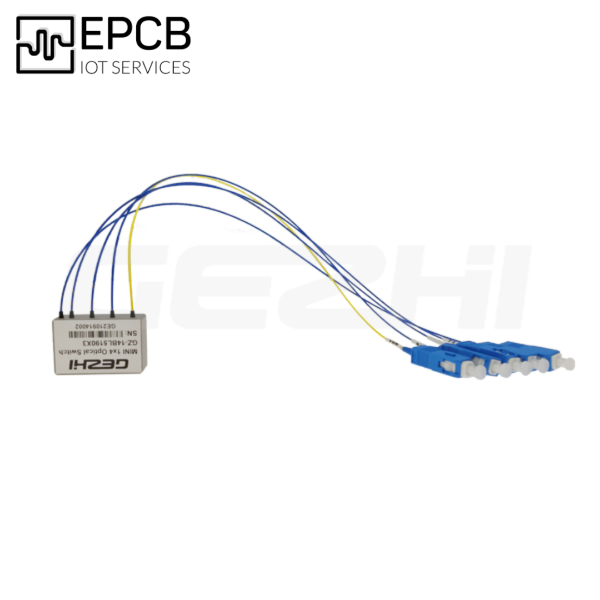

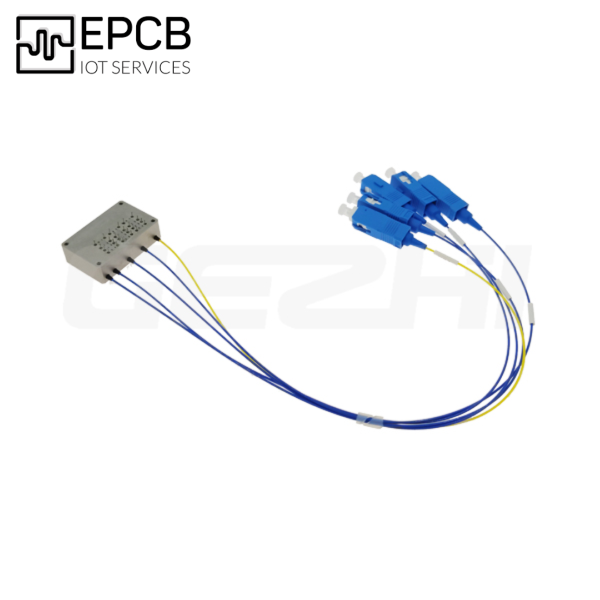

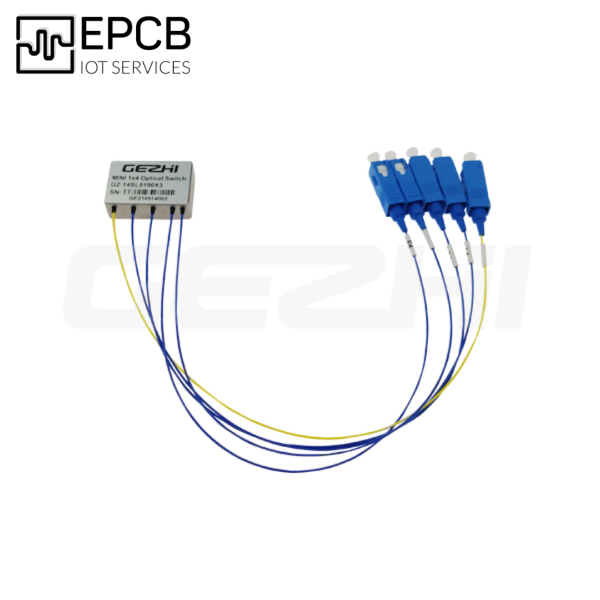

GEZHI Series Mini 1x4 fiber optic switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. The latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors, and the new material based advanced. design significantly reduces moving part position sensitivity, offering unprecedented high stability and longevity, as well as an unmatched low cost. The electrical driver is also available. The switch is bidirectional.

Features
  • Unmatched Low Cost
  • Low Optical Distortions
  • High Isolation
  • High Reliability
  • Epoxy-Free Optical Path
Application
  • Channel Blocking
  • Configurable Add/Drop
  • System Monitoring
  • Instrumentation

Performance
1x4   Mini Switch
Unit
Min
Typical
Max
Operation Wavelength
nm
1260 ~ 1610nm
Insertion Loss 1
dB
0.4
0.6
1.0
Wavelength Dependent Loss
dB

0.2
0.4
Polarization Dependent Loss
dB
0.05
0.1
0.2
Return Loss
dB
>50
Cross Talk
dB
>50
Switching Time
ms

4
10
Repeatability

<±0.02
Operating Voltage
VDC
3V or 5V
Voltage Pulse Width (Latching)
ms
Typical: 20
Operating Current³
Latching
mA
<26
Non-Latching
<36
Switching Type

Latching / Non-Latching
Operating Temperature 2

-5~+70
Optical Power Handling
mW
Typical: 300mW  Max:500mW
Storage Temperature
℃
-40~+85
Fiber Type

SMF-28
Package Dimension
mm
35L x 23W x 10H

Electrical Driving
Latching
Optical Path
Relay
Electrical Drive
Status Sensor
Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Input → Port 1
Relay 1
5V Pulse
GND
Open
Close
Close
Open
Relay 2, 3
N/A
N/A
--
--
--
--
Input → Port 2
Relay 1
GND
5V Pulse
Close
Open
Open
Close
Relay 2
5V Pulse
GND
Open
Close
Close
Open
Relay 3
N/A
N/A
--
--
--
--
Input → Port 3
Relay 1, 2
GND
5V Pulse
Close
Open
Open
Close
Relay 3
5V Pulse
GND
Open
Close
Close
Open
Input → Port 4
Relay 1,2,3
GND
5V Pulse
Close
Open
Open
Close

Non-Latching
Optical Path
Relay
Electrical Drive
Status Sensor
Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Input → Port 1
Relay 1
5V Pulse
GND
Close
Open
Open
Close
Relay 2, 3
No Power
Open
Close
Close
Open
Input → Port 2
Relay 2
5V Pulse
GND
Close
Open
Open
Close
Relay 1, 3
No Power
Open
Close
Close
Open
Input → Port 3
Relay 3
5V Pulse
GND
Close
Open
Open
Close
Relay 1, 2
No Power
Open
Close
Close
Open
Input → Port 4
Relay 1,2,3
No Power
Open
Close
Close
Open

Ordering Information
Type
Wavelength
Control   Model
Voltage
Fiber Type
Fiber Diameter
Fiber Length
Connector
M14=1x4
M41=4x1
1=1060nm
2=C+L
3=1310
4=1410
5=1550
35=1310&1550
B=1260~1620
X=Special
L=Latching
N=Non-   Latching
3=3V
5=5V
1=SMF-28
X=Special
25=250um
90=900um
X=Others
1=0.5m
2=1m
3=1.5m
X=Others
00=None
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
LP=LC/UPC
LA=LC/APC
X=Others
