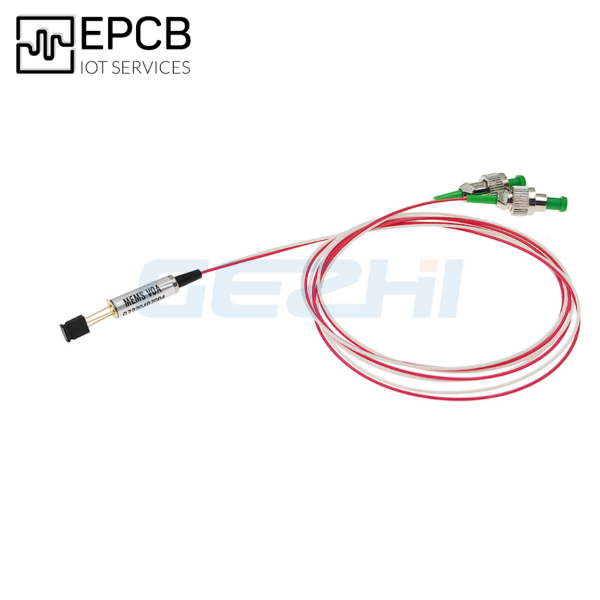

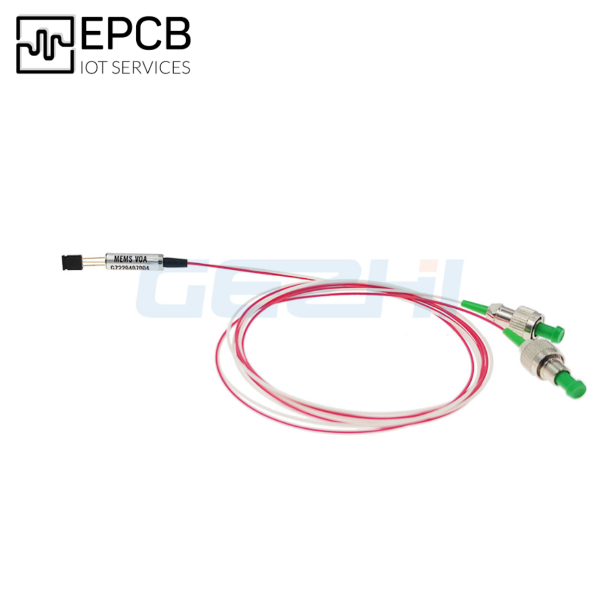

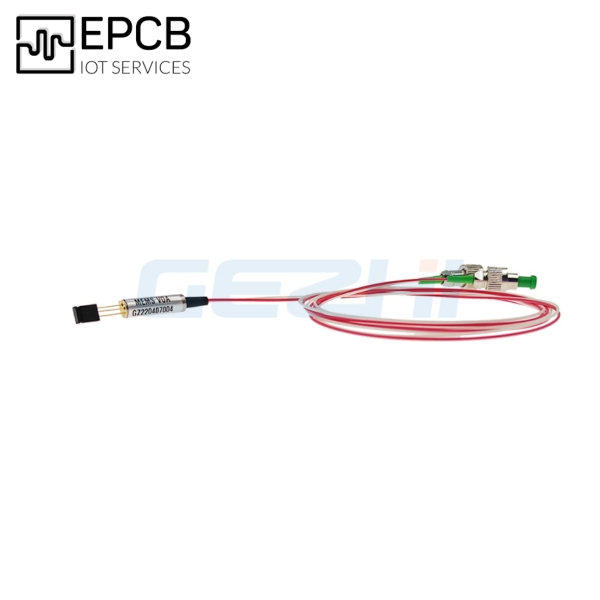

MEMS VOA
Features
Ultra Compact Structure
Low Power Consumption
Low Insertion Loss
Ultra-High Reliability
Application
Data Center
Sensor Networks
Test and Measurement
Telecom
Technical Paremeter
Parameters | Unit | MEMS VOA | |
Type | Bright | Dark | |
Operating Wavelength | nm | 1260~1650 for SM 850/1300 for MM | |
Attenuation Range | dB | ≥ 30 @5V (SM) ≥ 30 @30V (MM) | |
Response Time | ms | ≤ 5 | |
Insertion Loss | dB | ≤ 0.7 | |
Return Loss | dB | ≥ 50 (SM) ≥ 30 (MM) | |
Attenuation Slop | dB/V | ≤ 20 | |
Polarization Dependent Loss | dB | 0.2@0dB 0.4@0~10dB 1.0@10~20dB | |
Optical Power | mW | ≤ 500 | |
Driving Voltage | V | ≤6.5 (SM) ≤35 (MM) | |
Operating Temperature | ℃ | -20~85 | |
Storage Temperature | ℃ | -40~+85 | |
Dimension | mm | Φ5.4×19 | |
Note: 1. Within operating temperature and all SOP.
2. Excluding connector, and add 0.2dB IL with connect
Voltage-Attenuation curve
Dimension
Pins
Pin No. | MEMS VOA (SM) | MEMS VOA (MM) |
1 | Anode(+) | Anode(+) |
2 | Cathode(-) | GND |
3 | GND | GND |
Ordering Information:
Type | Wavelength | Type | Attenuation Range | Fiber Diameter | Fiber Length | Connector |
MEMS VOA | 1=O band 2=C band 3=L band 4=Full band 5=1310/1490/1550 ..... | B=Bright D=Dark | 25=25dB 30=30dB 40=40dB X=Others | 25=250um 90=900um X=Others | 05=0.5m 10=1.0m X=Others | 00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC X=Others |
