1xN MEMS Optical Switch Rackmount

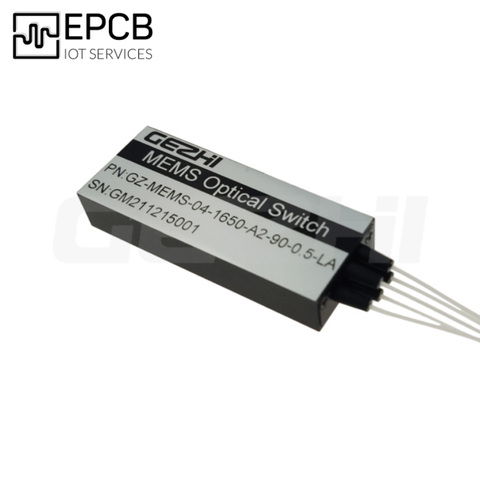

GEZHI’s MEMS Optical Switch, MEMs Fiber Switches are based on integrated silicon MEMS technology and is available in multichannel 1x4, 1x8, 1x16, 1x24, 1x32, 1x64, 1x128 up to 1x256 and matrix MxN Mems optical switch 8x8, 16x16, 16x64, 64x64 channels. Inside the switch package both the CMOS/TTL compatible driver. The array of MEMS optical switches can be controlled individually and are bidirectional so they can be used in either a 1xN or Nx1 orientation.
GEZHI’ s MEMS 1xN optical switches offer excellent optical performance, high reliability over a very long lifetime. They have been tested and proven in the telecommunication, aerospace and other demanding applications.
Features SerialNet, High Reliability, High Stability LCD display panel. Visual display, Convenient operation Transparent transmission signal. High stability and reliability Channel and time interval of automatic scanning can be set up RS232 Control and RJ45 Ethernet Remote Management | Applications FITL Automatic Measurement Optical Network Remote Monitoring Cable Monitoring and Maintaining system |
Technical Index
Parameter | Unit | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 | 1x128 | 1x256 |
Wavelength Range | nm | 850/1310 for MM or 1260~1650 for SM or customized | |||||||
Testing Wavelength | nm | 850/1310, 1310/1550 or customized | |||||||
Insertion Loss (Max) | dB | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.7 | ≤1.7 | ≤2.0 | ≤2.2 | ≤2.4 |
Return Loss | dB | MM ≥ 30, SM ≥ 45 | |||||||
Crosstalk | dB | MM ≥ 30, SM ≥ 45 | |||||||
PDL | dB | ≤0.10 | |||||||
WDL | dB | ≤0.30 | |||||||
TDL | dB | ≤0.30 | |||||||
Repeatability | dB | ≤0.02 | |||||||
Switching Time | ms | ≤8 (Adjacent Channel) | |||||||
Optical Power | mW | ≤500 | |||||||
Fiber Type | um | 9/125 | |||||||
Connector | / | FC, SC, LC, ST, SMA or customized | |||||||
Monitor Port | / | RJ45 & RS232 or customized | |||||||
Working Power Supply (Plug Tyep) | V | AC：220V (50/60Hz) or DC：36V~72V | |||||||
Operating Temperature | ℃ | -10~+60 | |||||||
Storage Temperature | ℃ | -40~+85 | |||||||

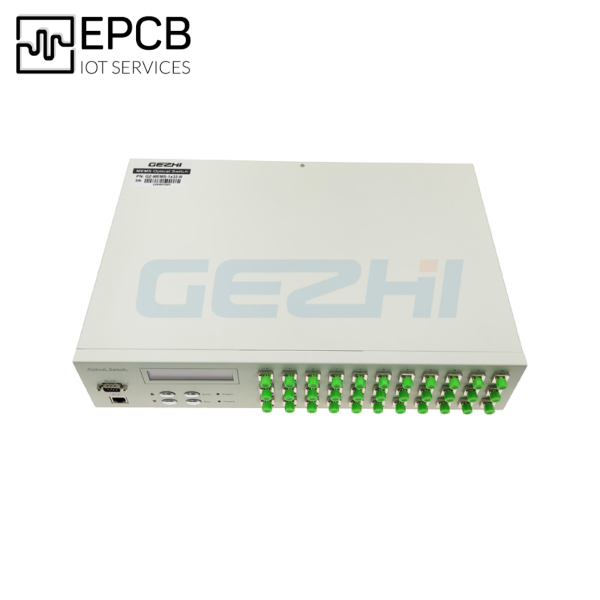

Rack mount Dimensions | mm | 1U L483XW230XH44.5 (Up to 32 channel) customization is available. | |||||||
2U L483XW230XH89 (Up to 128 channel) customization is available. | |||||||||
3U L483XW230XH133.5 (Up to 256 channel) customization is available. | |||||||||
Ordering Information MEMS-1xN-X-XX-X-XX-XX-XX-XX
MEMS | Mode | Wavelength | Package | Fiber Type | Power Supply | Connector |
1x4 1x8 1x16 1x32 1x64 1x128 S=Specity | S=SM M=MM | 85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm S=Specify | 1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify | M5=50/125 M6=62.5/125 S9=9/125 S=Specify | AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V | 00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
Panel to Explain
Front Panel

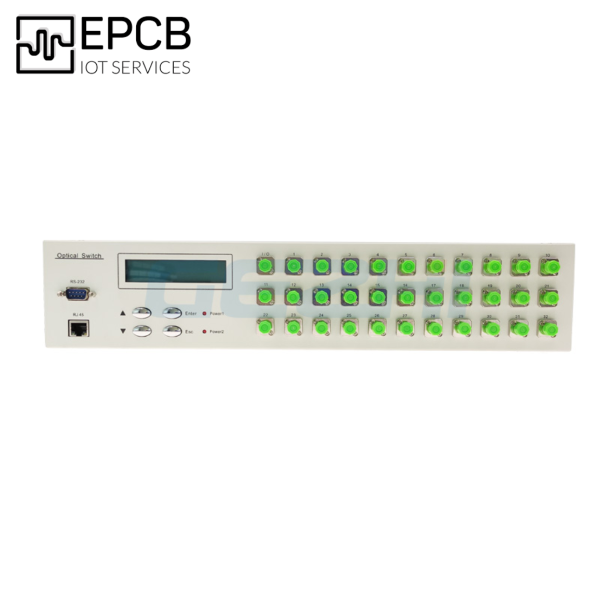

1x128 MEMS Fiber Optical Switches Rackmount Front Panel
- Power: Master switch of power supply
- RJ45: Communications network management interface;
- RS-232: Rs- serial interface; RS232 serial communication interface;
- LCD: Devices that display information directly;
- ▲: Key to move up; ▼: Key to move down; Enter: Key to determine;
- Esc: Key to cancel;
- com,1~128:Fiber interface;
1x128 MEMS Fiber Optical Switches Back Panel
AC:85~265V: Power cord interface;
ON/OFF: Master switch of power supply;
Optical Route
Communication Interface
(1)、RS-232
When connected to the computer, the DB9 serial port crosswire of both ends should be applied. It means that #2, #3 cable of both ends should be connected crossed, #5 cable should be abutting jointed, and the rest could be left out.
(2) 、RJ45
When connected to the computer through switch, through lines should be applied. (The accurate order is 1-orange white, 2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown.)
When connected to the computer directly, cross wire should be applied.(One end is l-orange white,2-orange, 3-green white,4-blue,5-blue white,6-green,7-brown white,8-brown. Another end is 1-green)
Serial ports connection and control
(1) 、RS-232 pins definition and connection
① RS-232 pins definition: DB9 pins, #2-RXD, #3-TXD, #5-GND, other pins can not connect.
② RS-232 connect with equipment and PC:
