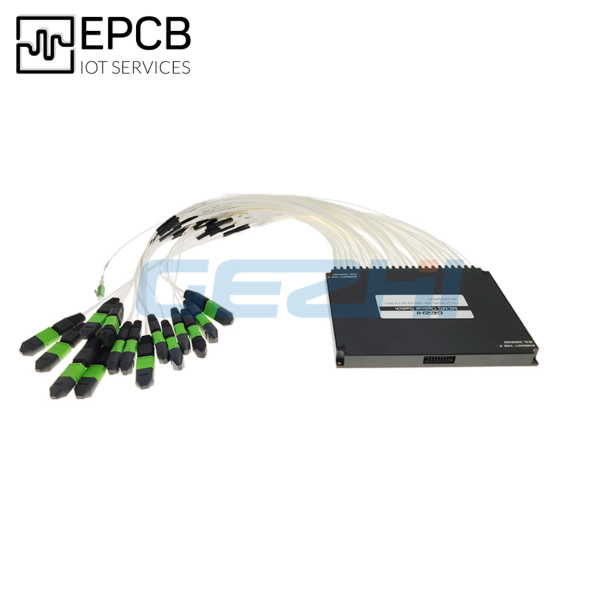

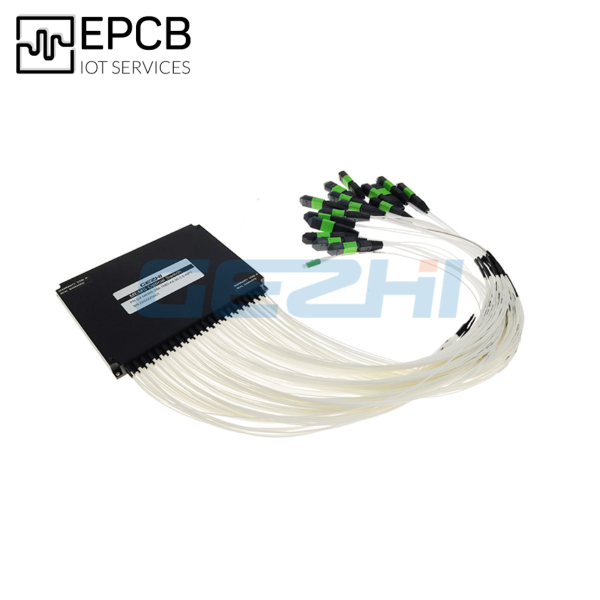

M×N MEMS Optical Switch Matrix Module
The MEMS MxN Matrix Optical Switch module is a kind of optical path controlling device, with the ability to control and switch the optical path. Thses matrix switches are based on integrated silicon MEMS technology and is available in multichannel 4x4, 8x8, 16x16, 24x24, 32x32, 64x64 up to 256x256 matrix MxN Mems optical switch which significant in optical communications, mainly used for multi-channel fiber monitoring in optical transmission system, LAN multi light source/detector automatically switching and optical sensor multi-points dynamic monitoring system; optical fiber, optical component, and field optical cable testing in optical testing system; optical device installation and adjustment. MEMS Matrix MxN optical fiber switch can switch one of the input channels to one of the output channels.

GEZHI offers standard single-mode, multi-mode, and Polarization Maintaining (PM Panda fiber) MEMS optical matrix module. Other custom options like non-symmetric or multicast configurations, switches with specialty fibers, or switches that can meet special environmental operating conditions, can be specified. Please contact GEZHI (sales@gezhi.net) for more information.

Features
  • Compact Structure
  • Fast Switching Time
  • Low Insertion Loss
  • High Reliability
Application
  • PON Network
  • Protection
  • Instrumentation
  • Network Monitoring

Performance
Parameters
Unit
MFSW-M×N Matrix Opticcal Switch
Operating Wavelength
nm
1260~1650 for SM, 850/1310 for MM
Insertion Loss
dB
M≤8, N≤8
≤2.0
M≤16, N≤16
≤2.4
M≤32, N≤32
≤3.0
M≤64, N≤64
≤3.4
WDL
dB
≤ 0.6
PDL
dB
≤ 0.3
Return Loss
dB
SM ≥ 45, MM ≥ 30
Crosstalk
dB
SM ≥ 50, MM ≥ 30
Repeatability
dB
≤ ±0.1
Switching Time
ms
≤ 15
Durability
times
≥ 10 billion
Power Supply
V
DC  5V ± 10%
Operating Current
mA
M≤16, N≤16
≤500
M≤32, N≤32
≤800
M≤64, N≤64
≤2000
M≤128 N≤128
≤4000
Optical Power
mW
≤ 500
Operating Temperature
°C
-5 ~ +75
Storage Temperature
°C
-40 ~ +85
Operating Humidity
%
5 ~ 95
Package Dimension
mm
M1: 200x180x18 (M+N≤32) or customized
Note: 1. Within operating temperature and all SOP.
2. IL is excluding connector, and add 0.3dB IL for a pair of connectors.

Optical Route

Dimension

Pins
Pin No.
Pin Assignment
Signal Type
Description
1
2
VCC
Power
Power Supply (DC +5V)
3
4
GND
Power
GND
5
TXD
Output
Data transmission port
6
RXD
Input
Data receiver port
7
8
GND
Power
GND
9~20
NC



Ordering Information:
Type
Channel
Wavelength
Fiber Type
Fiber Diameter
Fiber Length
Connector
MEMS-M
8x8
16x16
32x32
64x64
.....
128x128
85=850nm
13=1310nm
14=1490nm
15=1550nm
1625=1625nm
1650=1650nm
13/15=1310/1550nm
M5=50/125
M6=62.5/125
S9=9/125
X=Others
25=250um
90=900um
X=Others
1=1m
2=1.5m
X=Others
00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
MP=MPO
X=Customized
