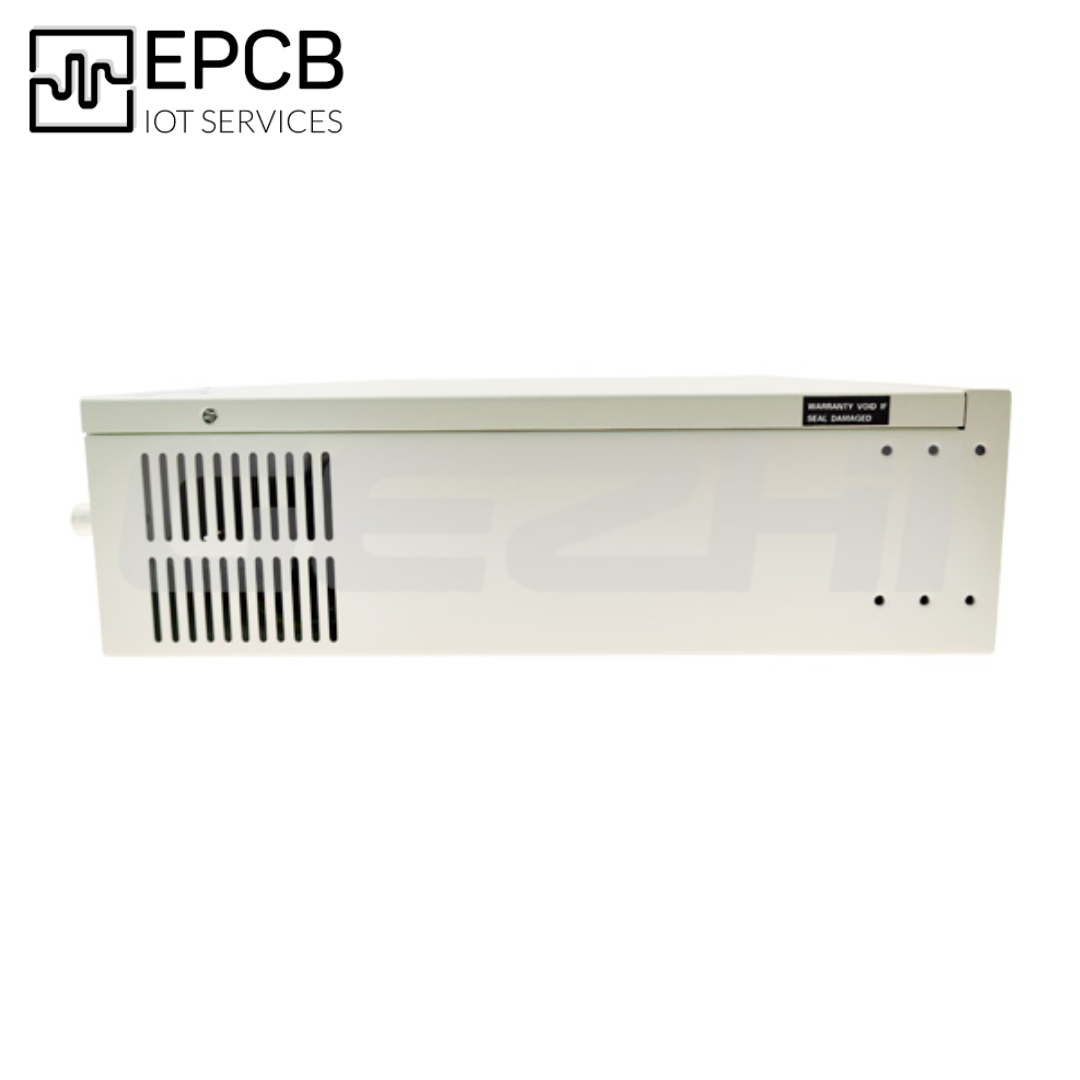

MxN MEMS Optical Switch Matrix Rackmount
GEZHI’s MEMS matrix Optical Switch, MEMs Fiber Switches matrix are based on integrated silicon MEMS technology and is available in multichannel 4x4, 8x8, 16x16, 24x24, 32x32, 64x64 up to 256x256 matrix MxN Mems optical switch. Inside the switch package both the CMOS/TTL compatible driver. The array of MEMS optical switches can be controlled individually and are bidirectional so they can be used in either a MxN or NxM orientation.
GEZHI’ s MEMS MxN optical switches offer excellent optical performance, high reliability over a very long lifetime. They have been tested and proven in the telecommunication, aerospace and other demanding applications.

Features
  • SerialNet, High Reliability, High Stability
  • Channel and time interval of automatic scanning can be set up
  • RS232 Control and RJ45 Ethernet Remote Management
  • LCD display panel. Visual display, Convenient operation
  • Transparent transmission signal. High stability and reliability
Applications
  • FITL
  • Automatic Measurement
  • Optical Network Remote Monitoring Cable Monitoring and Maintaining system


Technical Index
Parameters
Unit
MFSW-M×N Matrix
Operating Wavelength
nm
1260~1650 for SM, 850/1310 for MM
Insertion Loss
dB
M≤8, N≤8
≤2.3
M≤16, N≤16
≤2.7
M≤32, N≤32
≤3.3
M≤64, N≤64
≤3.7
WDL
dB
≤ 0.6
PDL
dB
≤ 0.3
Return Loss
dB
SM ≥ 45, MM ≥ 30
Crosstalk
dB
SM ≥ 50, MM ≥ 30
Repeatability
dB
≤ ±0.1
Switching Time
ms
≤ 15
Durability
times
≥ 10 billion
Optical Power
mW
≤ 500
Connector
/
FC, SC, LC, ST, SMA or customized
Monitor Port
/
RJ45 & RS232 or customized
Working Power Supply (Plug type)
V
AC：220V (50/60Hz) or DC：36V~72V
Operating Temperature
°C
-10 ~ +60
Storage Temperature
°C
-40 ~ +85
Operating Humidity
%
5 ~ 95
Package Dimension
mm
1U L483XW230XH44.5 (Up to 16 channel) customization is available.
2U L483XW230XH89 (Up to 32 channel) customization is available.

Ordering Information   MEMS-MxN-X-XX-X-XX-XX-XX-XX
MEMS
Mode
Wavelength
Package
Fiber Type
Power Supply
Connector
4x4
8x8
16x16
32x32
64x64
128x128
S=Specity
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
85/13=850/1300
13/15=1310/1550nm
S=Specify
1U=1U Rackmount
2U=2U Rackmount
3U=3U Rackmount
4U=4U Rackmount
S=Specify
M5=50/125
M6=62.5/125
S9=9/125
S=Specify
AC=Single 85~265V
DC=Single 36~72V
AA=Dual 85~265V
DD=Dual 36~72V
AD=AC85~265V+DC36~75V
00=None
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
LP=LC/UPC
LA=LC/APC
S=Specify

Optical Route

Panel to Explain

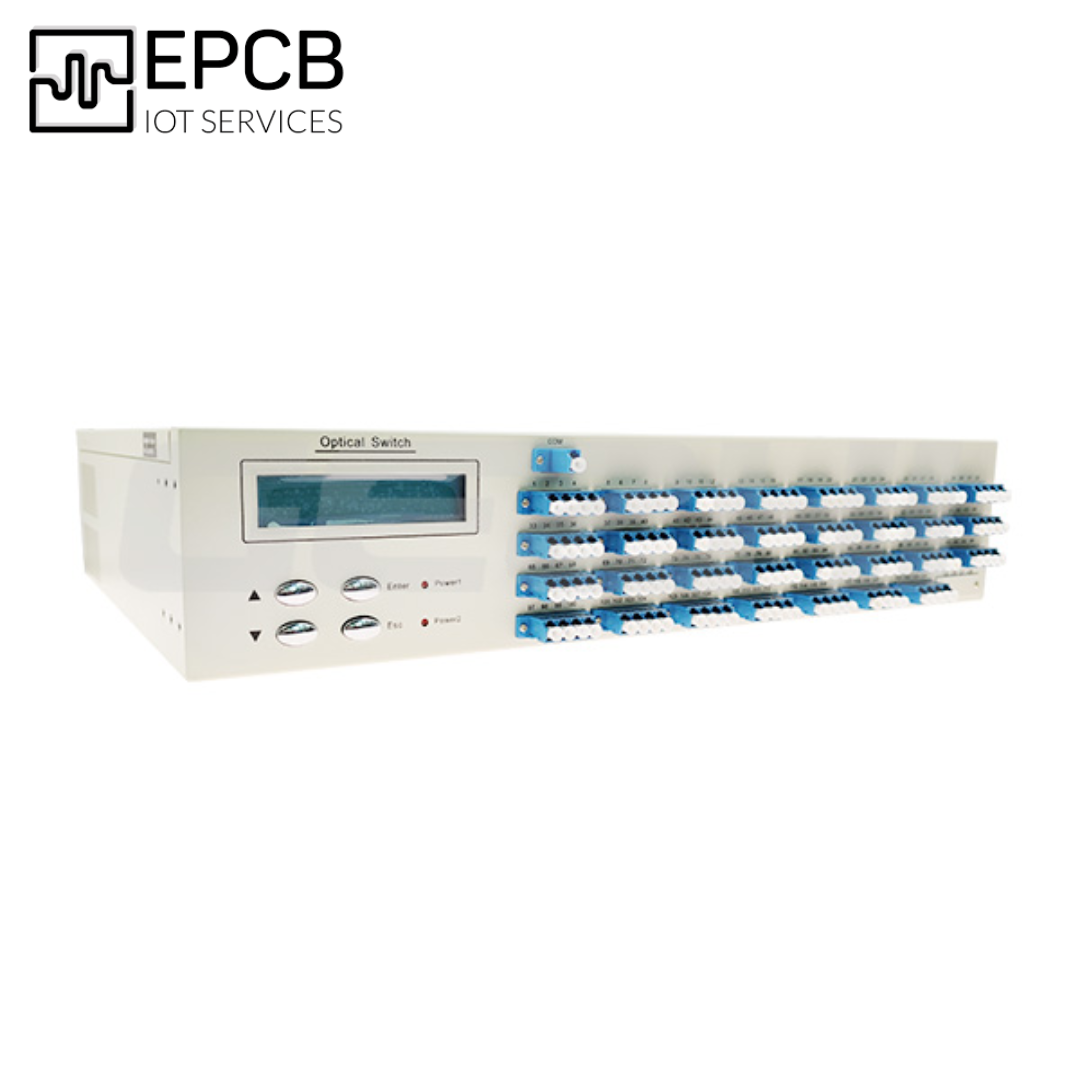

Front Panel
32x32 Optical Switch 19”2U Rack mount
Power:  Master switch of power supply
RJ45: Communications network management interface;
RS-232: Rs- serial interface; RS232 serial communication interface;
LCD: Devices that display information directly;
▲: Key to move up; ▼: Key to move down; Enter: Key to determine;
    Esc: Key to cancel;
Input 1~32; Output 1~32:Fiber interface;

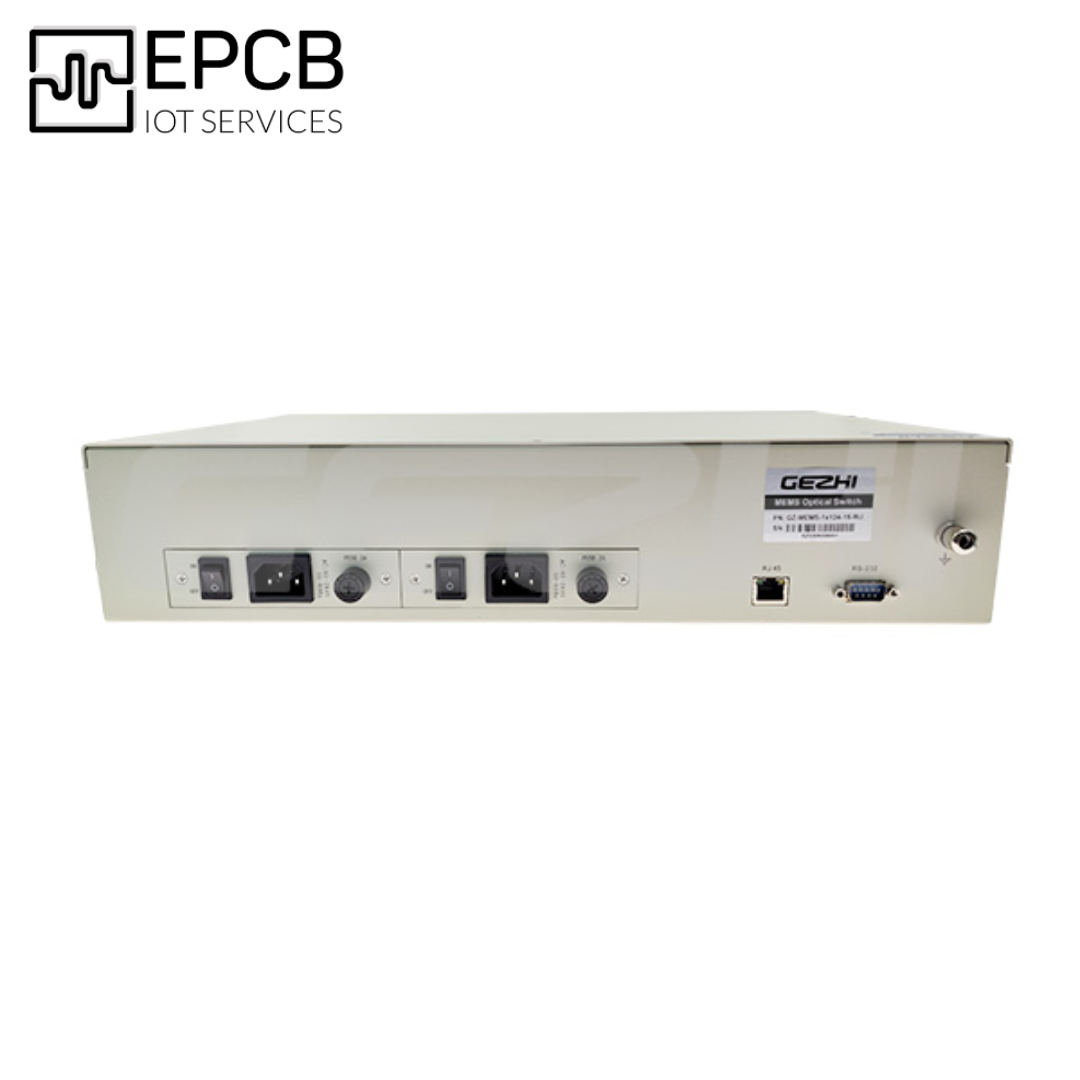

Back Panel
AC:85~265V: Power cord interface;
ON/OFF: Master switch of power supply;

Communication Interface
(1) 、RS-232
When connected to the computer, the DB9 serial port crosswire of both ends should be applied. It means that #2, #3 cable of both ends should be connected crossed, #5 cable should be abutting jointed, and the rest could be left out.
(2) 、RJ45
When connected to the computer through switch, through lines should be applied. (The accurate order is 1-orange white, 2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown.)
When connected to the computer directly, cross wire should be applied. (One end is l-orange white, 2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown. Another end is 1-green)

Serial ports connection and control
(1) 、RS-232 pins definition and connection
    ① RS-232 pins definition: DB9 pins, #2-RXD, #3-TXD, #5-GND, other pins can not connect.
② RS-232 connect with equipment and PC:
