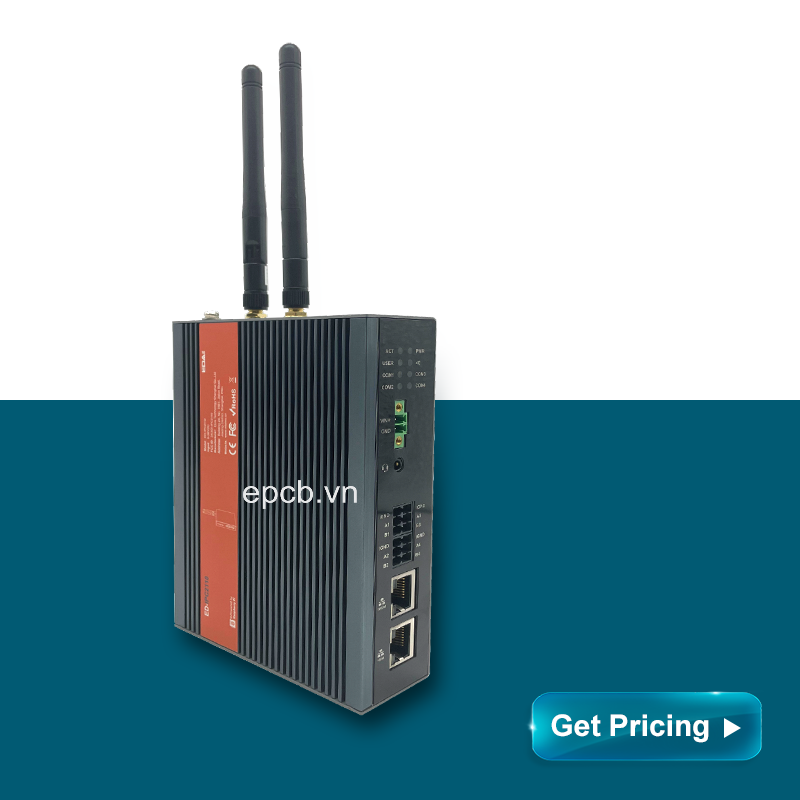

System

CPU

Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

VPU

H.265(HEVC), upto 4Kp60 decode

H.264, up to 1080p60 decode, 1080p30 encode)

GPU

OpenGL ES 3.1 & Vulkan 1.0

Memory

Options for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM

Storage

- Options for 8GB, 16GB, 32GB eMMC storage

- Micro SD card (user storage expansion)

- M.2 NVMe SSD (optional)

Software

Operating System

- Raspberry Pi OS(Desktop) 32-bit

- Raspberry Pi OS(Lite) 32-bit

- Raspberry Pi OS(Desktop) 64-bit

- Raspberry Pi OS(Lite) 64-bit

Front I/O

Power

1 x DC IN, 2-Pin 3.5mm spacing phoenix terminals with screw holes.

It supports 9V~36V input, the signal is defined as VIN+/GND.

Audio(optional)

1 x Audio In/Stereo Out, 3.5mm audio jack connector. It can be used as MIC IN and LNE OUT.

- When a headphone is connected, the audio output switches to the headphone.

- When no headphone is connected, the audio output switches to the speaker.

Note：Only ED-IPC2120 contains this interface.

RS485

6-Pin 3.5mm spacing phoenix terminals with IO isolator, equippes with electrostatic and surge protection. Different numbers of RS485 ports can be selected according to actual application, and the single signal is defined as IGND/A/B.

ED-IPC2110: 2 x RS485

ED-IPC2130: 3 x RS485

ED-IPC2120: 2 x RS485

ED-IPC2140: 4 x RS485

RS232

6-Pin 3.5mm spacing phoenix terminals with IO isolator, equippes with electrostatic and surge protection. Different numbers of RS232 ports can be selected according to actual application, and the single signal is defined as IGND/TX/RX.

ED-IPC2110: 2 x RS485

ED-IPC2130: 3 x RS485

ED-IPC2120: 2 x RS485

ED-IPC2140: 4 x RS485

1000M

Ethernet

1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network. PoE can be supported through expansion module.

1000M

Ethernet

1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network.

Rear I/O

SD Card Slot

1 x Micro-SD card slot, uses to install SD card for storing user data.

SIM Card Slot

1 x Nano SIM card slot, uses to install SIM card for getting 4G signal.

Micro USB

1 x Micro USB port, supports to flash eMMC for the system.

Side I/O

HDMI

1 x HDMI port, type A connector. It compatibles with HDMI2.1 standard andsupports 4K 60Hz.

USB2.0

2 x USB2.0 ports, type A connector, support up to 480Mbps.

Antenna

2 x SMA ports, use to connect 4G antenna and Wi-Fi/BT antenna.

User can select the antenna according to actual application.
