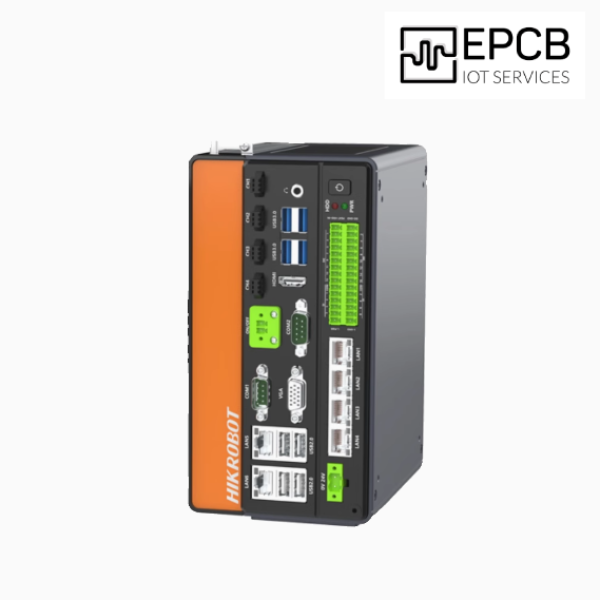

VC3000 series vision controller
VC3000 vision controller is a new generation of IPC for visual inspection, which is characterized with the flagship computing power and comprehensive control/data interface. It has desirable compatibility with machine vision components in common tasks such as positioning, inspection, measurement and recognition.
Well-designed machine structure
The VC3000 main module is extremely streamlined in size without sacrificing functions (162mm X 209mm X 106mm). Its thickness is equal to that of only two books, which requires less installation space. Its modular design is conducive for any combination of up to 3 accessory modules, to fulfill the data transmission and control of the vision system.
Key Feature
- Adopts 12th generation Intel® CPU to offer strong performance.
- Provides extended slot to connect with image frame grabbers.
- Supports 24-channel GPIO and NPN/PNP switching for output.
- Adopts GigE interfaces for stable data transmission.
Specifications
Model | Product Model | MV-VC3101X-128G60 | |
Type | VC3000X Vision Controller，G6900，8GB+128G SSD，Unsupported POE&PCI-E | ||
Performance | CPU | Intel®@ Core 12th CeleronTM G6900@ LGA1700 type CPU.Max.65W TDP | |
Memory | 8 GB | ||
Storage | 128 GB SSD | ||
GPU | Intel® HD Graphics 710 | ||
Operating system | Unactivated 64-bit Windows 10 | ||
| Video output | HDMI interface × 1, VGA interface × 1 Supports dual display outputs Max. resolution 1920 × 1080 @60 Hz (HDMI interface) Max. resolution 1920 × 1440 @60 Hz (VGA interface) | |
Digital I/O | Opto-isolated input × 8, opto-isolated output × 16 Output supports NPN/PNP switch | ||
Network interface | GigE interface × 6 | ||
USB interface | USB 2.0 × 4, USB 3.0 × 4 | ||
Serial port | RS-232 × 2, supports switching to RS-485 and RS-422 | ||
Light interface | 24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.) | ||
Electrical feature | Power supply | 24 VDC | |
Power consumption | Typ. 144 W | ||
Mechanical | Dimension | 161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2") | |
Weight | Approx. 2.1 kg (4.6 lb.) | ||
Temperature | 0 °C to 50 °C (32 °F to 122 °F) | ||
Humidity | 20% to 95% RH, non-condensing | ||
General | Certification | CE, KC |
