Quad 1×1 Optical Switches
Description

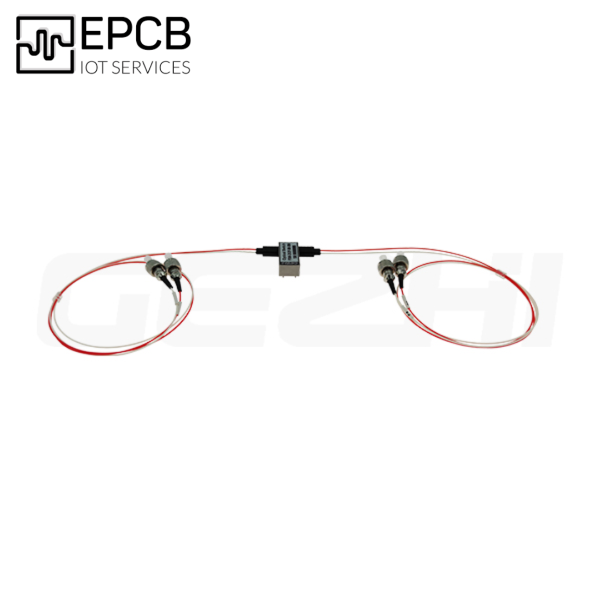

GEZHI Photonics’ Quad 1×1 Mechanical Fiber Optic Switch (Quad 1×1 Optical Switch) supports all wavelengths at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. Optical switches are widely used for Optical Networks, Protection, Transmitter and Receiver Protection, Network Test Systems and Instrumentations.
Features
Compact design, Miniature size
Short switching time
Bi-directionalLow optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range

Applications
R&D in Laboratory
System monitoring
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Technical Parameter
Model

Quad 1x1
Operating wavelength
nm
850±40/1300±40
12601620
wavelength
nm
850&1300
1310&1550
Insertion loss
dB
Typ:0.7  Max:1.0
Return loss
dB
MM≥30  SM≥50
Cross talk
dB
MM≥35  SM≥55
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Voltage
v
3.0 or 5.0
Operating life
Time
≥107
Switch time
ms
≤8
Power handling
mW
≤500
Operating temperature
-20+70
Storage temperature
-40+85
Fiber color

P1P1’:Black     P2P2’:Red   P3P3’:Blue  P4P4’:White
Size
mm
27.0×12×8.2±0.2
Note: 1  Within operating temperature and SOP.   2  Excluding Connectors.

Pins
Type
State
Pin definition
Power
Condition monitoring
Quad 1×1

1
5
6
10
2-3
3-4
7-8
8-9
Non-latching
A
X
Close
Open
Open
Close
X
B
P1-P1’P2-P2’
V+
GND
Open
Close
Close
Open
P3-P3’P4-P4’
  Latching
A
X
GND
V+
Close
Open
Open
Close
X
B
P1-P1’P2-P2’
V+
GND
Open
Close
Close
Open
P3-P3’P4-P4’

Optical Route
Dimension:

Ordering Information
Mode
Wavelength
Voltage Type
Control Model
Fiber Type
Fiber Diameter
Fiber Length
Connector
S=SM
M=MM
85=850nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=1.5m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
X=Others
