Key Feature
- Ultra high resolution and consistency of image clarity
- Bigger aperture, lower distortion and higher relative illumination rate
- Achromatic optical system design, Better imaging performance with color camera
- Excellent vibration resistance performance, optical axis shifting within pixel level
- Good stability at high and low temperature
- Multilayer and broadband coating design, compatible with visible and near-infrared applications
Dimension
Specifications

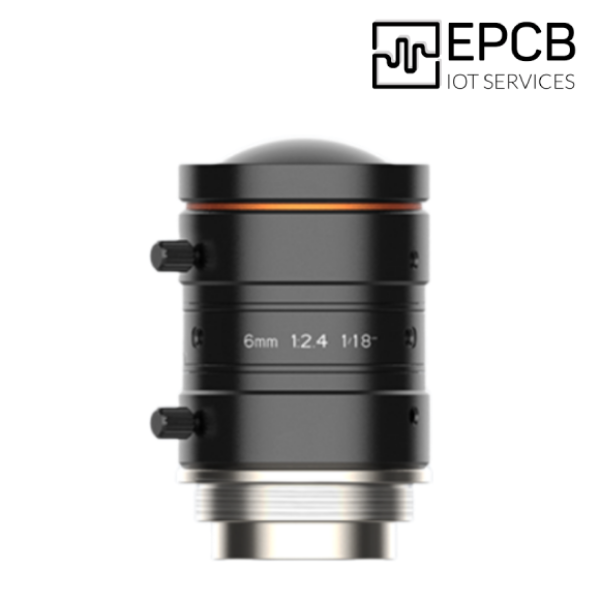

Model | Product Model | MVL-HF0624M-10MP |
Type | 6mm, F2.4, 1/1.8", 10MP Lens，C-Mount | |
Performance | Focal length | 6 mm |
F-Number | F2.4 ~ F16 | |
Image Size | Φ9 mm(1/1.8'') | |
Distortion | 0.37% | |
Minimum Object Distance | 0.1 m | |
Field of View | D(8.96mm):72.96° H(7.38mm):62.46° V(4.92mm):44.05° | |
Mechanical | Iris Control | Manual |
Focus Control | Manual | |
Mount | C-Mount | |
Flange Back Length | 17.526 mm | |
Dimension | Φ29.8 × 40.9 mm | |
Weight | 82.8 g | |
Temperature | -10 ~ 50°C | |
General | Certification | RoHS2.0 |
