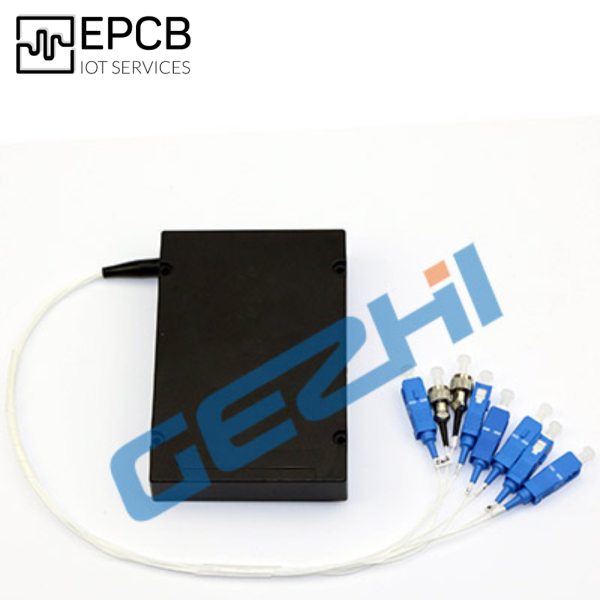

OBP Module
(Multi Channel Optical Switch)
Description
Optical Bypass Protection (OBP) system is an intelligent switching system that can bypass the faulty node caused by power off or a fault of optical output. It can identify the power status of the network node and the status of optical signal output, and instantaneously take switching of optical route when the network node fails accidentally, thus avoiding all route blocking and guaranteeing the high availability of the whole network.
Optical Bypass Protection System is for Node Protection, Bi-directional Protection, Customized Housing
Features:
◆ Wide Wavelength Range
◆ Low Crosstalk
◆ High Stability, High Reliability
◆ Modularized Design
Technical Parameter
Parameters | Unit | OBP Module |
Wavelength Range | nm | 1260 ~ 1650 |
Test Wavelength | nm | 1310 / 1550 |
Insertion Loss | dB | Typ: 1.2 Max: 1.5 |
Return Loss | dB | SM ≥ 45 |
Crosstalk | dB | SM ≥ 50 |
PDL | dB | ≤ 0.20 |
WDL | dB | ≤ 0.30 |
PD dark current | nA | ＜1 |
PD responsivity | mA/W | 24 ~ 40 |
PD report accuracy | dB | ±0.5 (at -50 to 23 dBm) |
Operating voltage | V | 4.5 ~ 5.5 |
Operating current | mA | 80 ~ 120 |
Operating Temperature | ℃ | -5 ~ +60 |
Storage Temperature | ℃ | -30 ~ +80 |
Dimension | mm | 120×80×18 |
OBP Module(Multi-Channel Optical Switch) Working Theory
Dimension
Ordering Information
Type | Fiber Type | Test Wavelength | Tube Type | Fiber Length (Include connector) | Connector | Dimension |
Optical Bypass Protection System Module SS: OBP-SS (Bi-direction bypass in duplex fibers, non-latching type) SS-L: OBP-SS-L (Bi-direction bypass in duplex fibers, latching type) X: Others | SM: SM, 9/125 X: Others | 1310: 1310nm 1550: 1550nm 1310/1550: 1310/1550nm X:Others | 90:900um X: Others | 05: 0.5m±5cm 10: 1.0m±5cm X: Others | OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others | 01: 120×80×18(ABS) X: Others |
