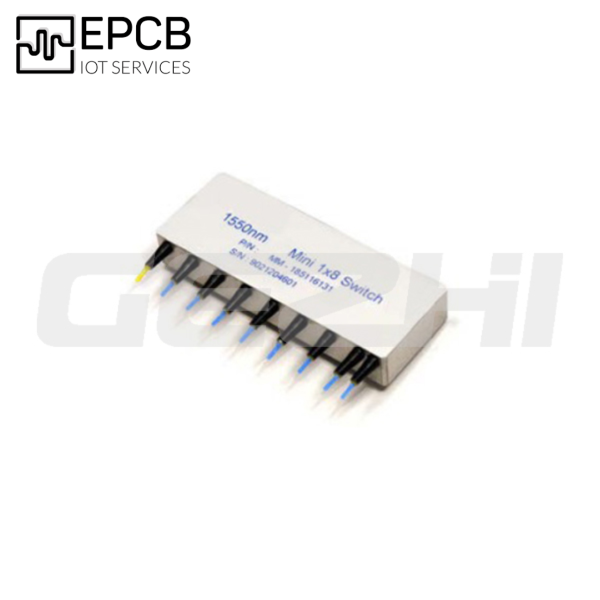

Mini 1x8 Mechanical Optical Switch
GEZHI Series Mini 1x8 fiber optic switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved by using a patent pending opto-mechanical configuration activated via an electrical control signal. The latching operation preserves the selected optical path after the drive signal has been removed.
The switch has integrated electrical position sensors, and the new material-based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability and an unmatched low cost.
Features Unmatched Low Cost Low Optical Distortions High Isolation High Reliability | Application Channel Blocking Configurable Add/Drop System Monitoring Instrumentation |
Performance
1x8 Mini Switch | Unit | Min | Typical | Max | |
Operation Wavelength | nm | 1260 ~ 1610nm | |||
Insertion Loss 1 | dB | 0.5 | 0.8 | 1.2 | |
Wavelength Dependent Loss | dB | 0.2 | 0.4 | ||
Polarization Dependent Loss | dB | 0.05 | 0.1 | 0.15 | |
Return Loss | dB | >55 | |||
Cross Talk | dB | >50 | |||
Switching Time | ms | 3 | 10 | ||
Repeatability | <±0.05 | ||||
Operating Voltage | VDC | 3V or 5V | |||
Voltage Pulse Width (Latching) | ms | Typical: 20 | |||
Operating Current³ | Latching | mA | <26 | ||
Non-Latching | <36 | ||||
Switching Type | Latching / Non-Latching | ||||
Operating Temperature 2 | -5~+70 | ||||
Optical Power Handling | mW | Typical: 300mW Max:500mW | |||
Storage Temperature | ℃ | -40~+85 | |||
Fiber Type | SMF-28 | ||||
Package Dimension | mm | 67L x 25W x 10H | |||
Electrical Driving
Latching
Optical Path | Relay | Electrical Drive | Status Sensor | ||||
Pin 1 | Pin 8 | Pin 2-3 | Pin 3-4 | Pin 5-6 | Pin 6-7 | ||
Input → Port 1 | Relay 1 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 2,3,4,5,6,7 | N/A | N/A | -- | -- | -- | -- | |
Input → Port 2 | Relay 1 | GND | 5V Pulse | Close | Open | Open | Close |
Relay 2 | 5V Pulse | GND | Open | Close | Close | Open | |
Relay 3,4,5,6,7 | N/A | N/A | -- | -- | -- | -- | |
Input → Port 3 | Relay 1, 2 | GND | 5V Pulse | Close | Open | Open | Close |
Relay 3 | 5V Pulse | GND | Open | Close | Close | Open | |
Relay 4,5,6,7 | N/A | N/A | -- | -- | -- | -- | |
Input → Port 4 | Relay 1,2,3 | GND | 5V Pulse | Close | Open | Open | Close |
Relay 4 | 5V Pulse | GND | Open | Close | Close | Open | |
Relay 5,6,7 | N/A | N/A | -- | -- | -- | -- | |
Input → Port 5 | Relay 1,2,3,4 | GND | 5V Pulse | Close | Open | Open | Close |
Relay 5 | 5V Pulse | GND | Open | Close | Close | Open | |
Relay 6,7 | N/A | N/A | -- | -- | -- | -- | |
Input → Port6 | Relay 1,2,3,4,5 | GND | 5V Pulse | Close | Open | Open | Close |
Relay 6 | 5V Pulse | GND | Open | Close | Close | Open | |
Relay 7 | N/A | N/A | -- | -- | -- | -- | |
Input → Port7 | Relay 1,2,3,4,5,6 | GND | 5V Pulse | Close | Open | Open | Close |
Relay 7 | 5V Pulse | GND | Open | Close | Close | Open | |
Input → Port8 | Relay 1,2,3,4,5,6,7 | GND | 5V Pulse | Close | Open | Open | Close |
Non-Latching
Optical Path | Relay | Electrical Drive | Status Sensor | ||||
Pin 1 | Pin 8 | Pin 2-3 | Pin 3-4 | Pin 5-6 | Pin 6-7 | ||
Input → Port 1 | Relay 1 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 2,3,4,5,6,7 | No Power | Close | Open | Open | Close | ||
Input → Port 2 | Relay 2 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 1,3,4,5,6,7 | No Power | Close | Open | Open | Close | ||
Input → Port 3 | Relay 3 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 1,2,4,5,6,7 | No Power | Close | Open | Open | Close | ||
Input → Port 4 | Relay 4 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 1,2,3,5,6,7 | No Power | Close | Open | Open | Close | ||
Input → Port 5 | Relay 5 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 1,2,3,4,6,7 | No Power | Close | Open | Open | Close | ||
Input → Port 6 | Relay 6 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 1,2,3,4,5,7 | No Power | Close | Open | Open | Close | ||
Input → Port7 | Relay 7 | 5V Pulse | GND | Open | Close | Close | Open |
Relay 1,2,3,4,5,6 | No Power | Close | Open | Open | Close | ||
Input → Port8 | Relay 1,2,3,4,5,6,7 | No Power | Close | Open | Open | Close | |
Dimension
Ordering Information
Type | Wavelength | Control Model | Voltage | Fiber Type | Fiber Diameter | Fiber Length | Connector |
18=1x8 81=8x1 | 1=1060nm 2=C+L 3=1310 4=1410 5=1550 35=1310&1550 85=850nm B=1260~1620 X=Special | L=Latching N=Non-Latching | 3=3V 5=5V | 1=SMF-28 X=Special | 25=250um 90=900um X=Others | 1=0.5m 2=1m 3=1.5m X=Others | 0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=ST//UPC 6=ST/APC 7=LC/UPC 8=LC/APC |
