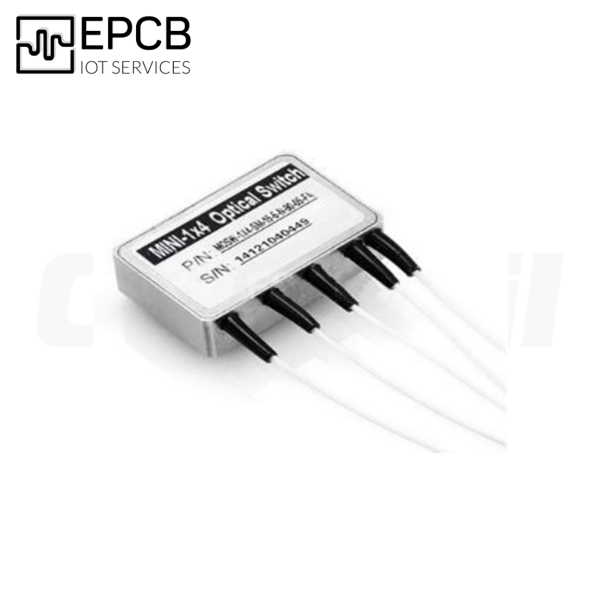

 Mini 1x4 Mechanical Optical Switches
GEZHI Series Mini 1x4 fiber optic switch connects optical channels by redirecting an incoming optical
Signal into a selected output fiber. This is achieved by using a patented opto-mechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed.
The switch has integrated electrical position sensors, and the new material based advanced. design significantly reduces moving part position sensitivity, offering unprecedented high stability and longevity, as well as an unmatched low cost. Electrical driver is also available. The switch is bidirectional.
We offer tight-bend-fiber version, which reduces the minimum bending radius from normal 15 mm to 7mm. This feature enables smaller overall foot print.
Features                                                                              Application
  • Unmatched Low Cost                                                             Channel Blocking
  • Low Optical Distortions                                                           Configurable Add/Drop
  • High Isolation                                                                          System Monitoring
  • High Reliability                                                                        Instrumentation
  • Epoxy-Free Optical Path

Performance
1x4 Mini Switch
Unit
Min
Typical
Max
Operation Wavelength
nm
1260 ~ 1610nm
Insertion Loss 1
dB
0.4
0.6
1.0
Wavelength Dependent Loss
dB

0.2
0.4
Polarization Dependent Loss
dB
0.05
0.1
0.2
Return Loss
dB
>50
Cross Talk
dB
>50
Switching Time
ms

3
10
Repeatability

<±0.05
Operating Voltage
VDC
3V or 5V
Voltage Pulse Width (Latching)
ms
Typical: 20
Operating Current³
Latching
mA
<26
Non-Latching
<36
Switching Type

Latching / Non-Latching
Operating Temperature 2

-5~+70
Optical Power Handling
mW
Typical: 300mW  Max:500mW
Storage Temperature
℃
-40~+85
Fiber Type

SMF-28
Package Dimension
mm
35L x 23W x 10H

Electrical Driving
Latching
Optcial Path
Relay
Electrical Drive
Status Sensor
Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Input → Port 1
Relay 1
5V Pulse
GND
Open
Close
Close
Open
Relay 2, 3
N/A
N/A
--
--
--
--
Input → Port 2
Relay 1
GND
5V Pulse
Close
Open
Open
Close
Relay 2
5V Pulse
GND
Open
Close
Close
Open
Relay 3
N/A
N/A
--
--
--
--
Input → Port 3
Relay 1, 2
GND
5V Pulse
Close
Open
Open
Close
Relay 3
5V Pulse
GND
Open
Close
Close
Open
Input → Port 4
Relay 1,2,3
GND
5V Pulse
Close
Open
Open
Close

Non-Latching
Optcial Path
Relay
Electrical Drive
Status Sensor
Pin 1
Pin 8
Pin 2-3
Pin 3-4
Pin 5-6
Pin 6-7
Input → Port 1
Relay 1
5V Pulse
GND
Close
Open
Open
Close
Relay 2, 3
No Power
Open
Close
Close
Open
Input → Port 2
Relay 2
5V Pulse
GND
Close
Open
Open
Close
Relay 1, 3
No Power
Open
Close
Close
Open
Input → Port 3
Relay 3
5V Pulse
GND
Close
Open
Open
Close
Relay 1, 2
No Power
Open
Close
Close
Open
Input → Port 4
Relay 1,2,3
No Power
Open
Close
Close
Open

Dimension



Ordering Information
Type
Wavelength
Control Model
Volatage
Fiber Type
Fiber Diameter
Fiber Length
Connector
14=1x4
41=4x1
1=1060nm
2=C+L
3=1310
4=1410
5=1550
35=1310&1550
B=1260~1620
X=Special
L=Latching
N=Non- Latching
3=3V
5=5V
1=SMF-28
X=Special
25=250um
90=900um
X=Others
1=0.5m
2=1m
3=1.5m
X=Others
0=None
1=FC/UPC
2=FC/APC
3=SC/UPC
4=SC/APC
5=ST/UPC
6=ST/APC
7=LC/UPC
8=LC/APC
