EC-R3399PC 6-Core 64-Bit Embedded AI Computer

  • Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Tiêu đề
  • Liên hệ

EC-R3399PC 6-Core 64-Bit Embedded AI Computer được nghiên cứu và chế tạo bởi công ty Firefly. Công ty Firefly là một công ty công nghệ trong lĩnh vực nhúng và phát triển trí tuệ nhân tạo, các sản phẩm máy tính công nghiệp ở đây được đánh giá rất cao nhờ có cấu hình mạnh mẽ và kết nối linh hoạt hơn so với các sản phẩm trên thị trường.

Điểm đặc biệt của dòng máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer là ở chỗ Sản phẩm này được trang bị bộ xử lý 6 nhân Rockchip RK3399 với Cortex-A72 lõi kép và Cortex-A53 lõi tứ, hoạt động ở tốc độ lên tới 1,8 GHz. Nó bao gồm GPU lõi tứ Mali-T860 hỗ trợ giải mã video OpenGL ES1.1/2.0/3.0/3.1 và 4K 10-bit H.265/H.264, đảm bảo hiệu năng đồ họa mạnh mẽ.

Ngoài ra EC-R3399PC 6-Core 64-Bit Embedded AI Computer còn hỗ trợ Gigabit Ethernet, WiFi băng tần kép (2.4GHz/5GHz, 802.11 a/b/g/n/ac) và Bluetooth 5.0, cung cấp khả năng liên lạc mạng nhanh chóng và đáng tin cậy.

Với giao diện M.2 PCIe 2.1 để mở rộng SSD 2242 NVMe, cung cấp dung lượng lưu trữ lớn với tốc độ đọc/ghi nhanh.

EC-R3399PC 6-Core 64-Bit Embedded AI Computer  tương thích với nhiều hệ điều hành bao gồm Android, Ubuntu, Debian 9 và Linux+QT. Nó hỗ trợ nhiều tùy chọn khởi động khác nhau như thẻ TF, eMMC, SSD và USB.

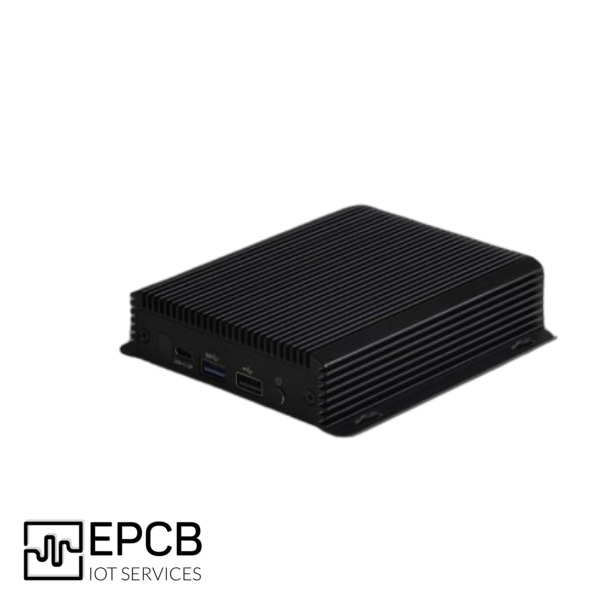

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer có nhiều tính năng nổi bật từ bộ xử lý 6 nhân cho tới khả năng kết nối WIFI, bluetooth mạnh mẽ )

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer được trang bị bộ xử lý 6 nhân Rockchip RK3399 với Cortex-A72 lõi kép và Cortex-A53 lõi tứ, hoạt động ở tốc độ lên tới 1,8 GHz )

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

(Ethernet 1000Mbps, WiFi băng tần kép (2.4GHz/5GHz, 802.11 a/b/g/n/ac) và Bluetooth 5.0, cung cấp khả năng liên lạc mạng nhanh chóng và đáng tin cậy )

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( M.2 PCIe 2.1 để mở rộng SSD 2242 NVMe, cung cấp dung lượng lưu trữ lớn với tốc độ đọc/ghi nhanh )

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( Máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer có khả năng tản nhiệt vô cùng tốt, giảm tiêu thụ điện năng )

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( Máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer tương thích với nhiều hệ điều hành như Ubuntu, Debian9, Linux+QT)

Thông số kỹ thuật của AI Computer EC-R3588SPC FD Octa-Core

SOCRockchip RK3399
CPU6-core 64-bit processor (2×Cortex-A72 + 4×Cortex-A53), frequency up to1.8GHz
GPU

Mali-T860 MP4 quad-core GPU,

Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

VPU

Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps

1080P multi-format video decoding (WMV, MPEG-1/2/4, VP8)

1080P video encoding, support H.264 and VP8

Video post-processing: IVTC, denoising, edge/detail/color optimization

RAM2GB/4GB LPDDR4
Storage

16GB/32GB/64GB/128GB eMMC

SPI Flash: on-board 16MB (16MB-512 MB optional)

Storage Expansion

1 × PCIe2.1 (2Lane), can expand with one 2242 NVMe SSD

1 × TF Card Slot

Wireless Network

Support 2.4GHz/5GHz dual-band WiFi, Support 802.11 a/b/g/n/ac protocol

Support Bluetooth 5.0 (BLE)

Ethernet1000Mbps GbE (RJ45)
Video Output

1 × HDMI2.0, 4K@60fps video output

1 × DP1.2 (USB-C), 4K@60fps video output

* Support dual-monitor display: 1×USB-C (2K output)+ 1×HDMI (4K output)

Audio

1 × 3.5mm audio jack (MIC input)

1 × HDMI2.0 audio output

1 × DP1.2 audio output (USB-C)

USB

1 × USB3.0 (Limit 1000 mA)

1 × USB2.0 (Limit 500 mA)

1 × USB-C multi-function interface (USB3.0 OTG data transmission and DP1.2video output)

Bottome

1 × Power key

1 × Recovery key (at the bottom of the audio jack)

IRSupport infrared remote control
PowerDC12V (5.5*2.1mm jack, support 9V~24V wide voltage input)
OS

Support Android10.0, Ubuntu20.04, Station OS, Debian9, Linux+QT, etc.

Support TF card, EMMC, SSD and USB flash drive bootup

Size119mm×124.4mm×27mm
AppearanceIndustrial-grade metal enclosure, all aluminium alloy top cover, matte black, and fanless design
Weight≈0.52kg
Power Consumption

Idle: 0.12W

Typical: 3.6W

Max: 9.6W

Environment

Operating Temperature: -20- 60

Storage Temperature: -20- 70

Storage Humidity: 10%80 %

Thông tin chi tiết sản phẩm AI Computer EC-R3588SPC FD Octa-Core



EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( Máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer hỗ trợ nhiều cổng kết nối đa dạng )

Ứng dụng thực tế của AI Computer EC-R3588SPC FD Octa-Core


EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( Máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer hỗ trợ đầy đủ tài liệu về SDK, Development tool, tài liệu hưỡng dẫn )

EC-R3399PC 6-Core 64-Bit Embedded AI Computer

( Máy tính EC-R3399PC 6-Core 64-Bit Embedded AI Computer được ứng dụng trong nhiều lĩnh vực như IoT gateway, đầu ghi Video mạng thông minh (NVR), hệ thống điều khiển công nghiệp, ...)
