EC-A3399C Six-core AI Embedded Computer được nghiên cứu và chế tạo bởi công ty Firefly. Công ty Firefly là một công ty công nghệ trong lĩnh vực nhúng và phát triển trí tuệ nhân tạo, các sản phẩm máy tính công nghiệp ở đây được đánh giá rất cao nhờ có cấu hình mạnh mẽ và kết nối linh hoạt hơn so với các sản phẩm trên thị trường.
Máy tính EC-A3399C AI được phát triễn từ EC-A3399C với khả năng nổi trội Multimedia như Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps, 1080P Multi - format video decoding (VC-1, MPEG-1/2/4, VP8), 1080P video decoding, support H.264, VP8 formats, Video post processor: deinterlacing, denoising, edge/ detail/ color optimization. Ngoài ra máy còn được tích hợp AI và các tool train từ nhà sản xuất như PLAI model training tool (Support for GNet1, GNet18 and GNetfc network models which based on VGG) phù hợp với các dự án train AI, xử lý ảnh.
Dựa trên nền tảng mã nguồn mở hiệu suất cao AIO-3399C (phiên bản AI), với vỏ kim loại công nghiệp và thiết kế không quạt, được cấu hình với khả năng làm mát hiệu quả cao, giao diện hoàn chỉnh, tính ứng dụng và khả năng tính toán mạnh mẽ cùng hiệu suất siêu cao. Thiết bị có thể áp dụng cho tính toán biên hiệu suất cao để tăng tốc các phép tính học sâu và thuật toán AI. Nó có thể được ứng dụng nhanh chóng trong các lĩnh vực như tính toán biên di động, nhà thông minh, nhận diện khuôn mặt, v.v.
Thông số kỹ thuật:
Specification | ||||
CPU | RK3399, Dual-core(Cortex-A72)+ Quad-core(Cortex-A53),frequency up to 1.8 GHz | |||
GPU | Quad-core ARM Mali-T860 Support OpenGL ES 1.1/2.0 /3.0, OpenVG1.1, OpenCL, Directx11 | |||
NPU | SPR2801S, Adopt MPE and APiM unique AI architecture Computing performance up to 2.8Tops and 9.3Tops/W energy efficiency | |||
DDR | 2GB / 4GB dual-channel LP DDR4 | |||
Storage | 8GB -128GB High-speed eMMC、TF Card Slot | |||
Network | RJ45 interface Gigabit Ethernet On-board WIFI/BT module, support 2.4GHz/5GHz dual-band WiFi,802.11a/b/g/n/ac protocol Support Bluetooth 4.1(support BLE) Mini PCIe(Used to expand 3G/4G modules, use with Micro SIM card slot) | |||
Multimedia | Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps 1080P Multi-format video decoding(VC-1, MPEG-1/2/4, VP8) 1080P video decoding, support H.264,VP8 formats Video post processor: deinterlacing, denoising, edge/ detail/ color optimization | |||
Display | Dual VOP: support 4096X2160 and 2560X1600 resolution HDMI2.0 support 4K 60Hz display, support HDCP 1.4/2.2 Support eDP 1.3(4 line, 10.8Gbps), can directly drive multiple resolutions LCD screen which with eDP interface Support dual 6/8bit LVDS interface, up to 24-bit 1920×1200 resolution Support Rec.2020 and Rec.709 color gamut conversion 1 x DP 1.2 (DisplayPort) , support 4K@60 fps output | |||
Interface | Dual ISP pixel processing capability up to 13MPix/s, support simultaneous input of two-way camera data Support USB3.0 HOST and Type-C ADC x 1, SPI / GPIO, LED×2, I²C×1, Gravity sensor×1(Scalable) | |||
SD Card | Support SD Card | |||
RTC | Support RTC real-time clock | |||
On/Off | Support timer switch | |||
Audio | PHONE x 1, LINE-IN x 1, LINE-OUT x 1, Microphone (left and right channel) | |||
USB | Type-C(OTG), USB3.0 x 1, USB2.0 x 4(interface x 2, socket x 2) | |||
Button | Power Button(Button×1, socket×1), Recover Button(Button×1, socket×1) | |||
Serial port | RS232×1, RS485×1, Debug serial port×1, on-board 2-way TTL | |||
IR | With a one-way infrared receiver, support infrared remote control | |||
Power Supply | DC 12V-2A(DC5.5 × 2.1mm), Support for external connection( Power socket×1) Can power by POE+(802.3 AT, Output Power 30W) Ethernet | |||
System | Support Android\Linux\Ubuntu system | |||
Framework | Support PyTorch, Caffe framework, follow-up support TensorFlow | |||
Tools | PLAI model training tool (Support for GNet1, GNet18 and GNetfc network models which based on VGG) | |||
Power Parameter | ||||
Type | Min | Typical | Max | |
Operating Voltage | 6v | 12v | 24v | |
Operating Current | 500mA | 1A | 2A | |
Environmental Parameter | ||||
Type | Mix | Typical | Max | |
Operating Temperature | -20 ℃ | 25 ℃ | 60 ℃ | |
Storage Temperature | -40 ℃ | 25 ℃ | 125 ℃ | |
Appearance Structure | ||||
Specification | ||||
Size | 160 x 94 x 26 mm | |||

(EC-A3399C Six-core AI Embedded Computer trang bị vi xử lý six-core 64 bit ARM Cortex-A72)
(EC-A3399C Six-core AI Embedded Computer có kiến trúc AI hiện đại)
(EC-A3399C Six-core AI Embedded Computer Hỗ trợ đa công cụ training AI)
(EC-A3399C Six-core AI Embedded Computer cung cấp network trainning)

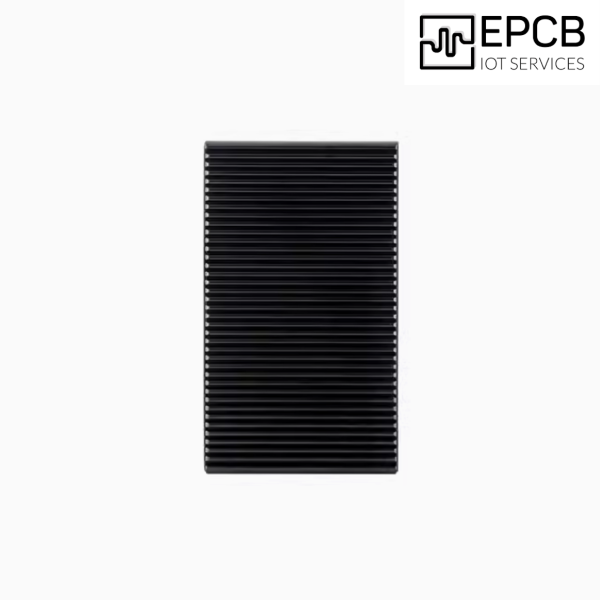

(EC-A3399C Six-core AI Embedded Computer có thiết kế phần cứng kim tản nhiệt )

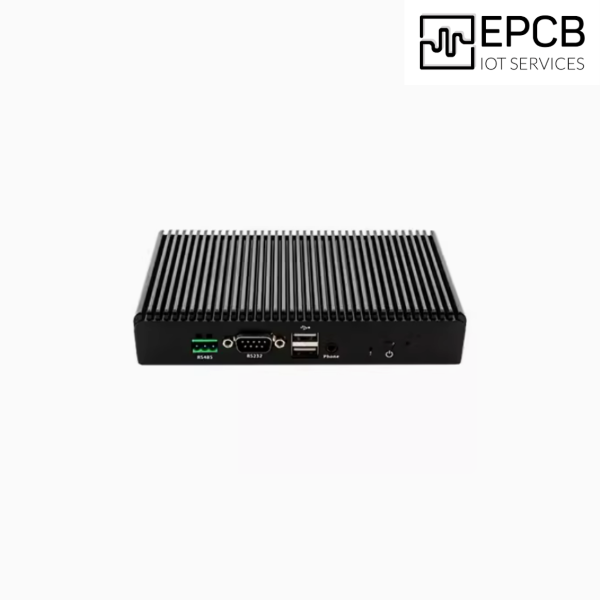

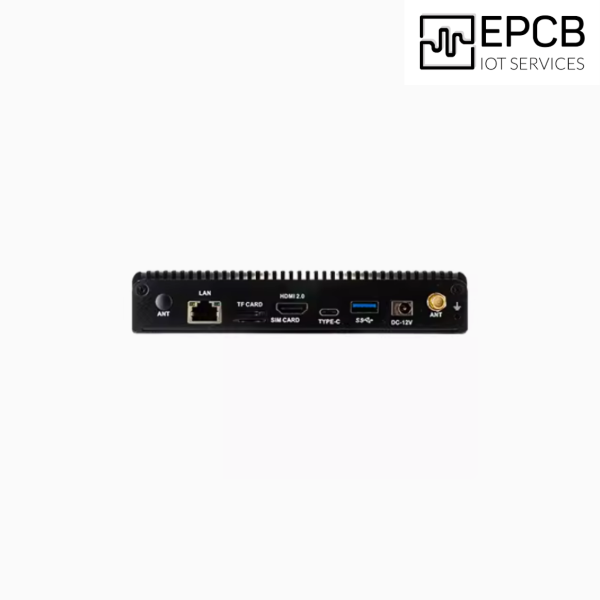

(EC-A3399C Six-core AI Embedded Computer hỗ trợ nhiều loại cổng kết nối)
(Kích thước của EC-A3399C Six-core AI Embedded Computer)
EC-A3399C Six-core AI Embedded Computer là lựa chọn hoàn hảo cho các chuyên gia AI, nhà khoa học dữ liệu và doanh nghiệp đang tìm kiếm giải pháp tính toán mạnh mẽ. Với hiệu suất vượt trội, khả năng xử lý đa dạng và linh hoạt, EC-A3399C AI sẽ là trợ thủ đắc lực giúp bạn khai thác tối đa tiềm năng của trí tuệ nhân tạo.
Thông tin tin sản phẩm / trao đổi kĩ thuật quý khách liên hệ về:
- Email: contact@epcb.vn
- Zalo: 0367939867
Hoặc truy cập EPCP để biết thêm thông tin chi tiết và cập nhật những sản phẩm mới nhất.
