Input signal type

Display range

Input signal type

Display range

Voltage

0~5VDC

-1999 -9999

Thermocouple

K

-100~1300ºC

1~5VDC

S

0~1700ºC

0~10VDC

RIGHT

0~1700ºC

Present

4~20mA

-1999 -9999

B

500~1800ºC

0~10mA

E

-100~800ºC

0~20mA

J

-100~1100ºC

RTD

Pt100

-200.0~500ºC

T

-100~400ºC

Cu100

-50.0~150.0 ºC

Cu50

-50.0~150.0 ºC

BA1

-200.0~650.0ºC

BA2

-200.0~500ºC

G53

-50.0~150.0 ºC

Notice board

Name

Item

Installation range

Attention

Ah

First Warning Point Set Value

-1999 -9999

7.2

AL

 Second Warning Point Set Value

-1999 -9999

7.2

OA

 Security code

6.4

ALo1

 Type 1 Warning Point

7.2

ALo2

 Second type of warning point

7.2

JOINT A1

 Hysterisis Diagram of First Warning Point

0~8000

7.2

HYA2

 Hysterisis diagram of 2nd Warning Point

0~8000

7.2

Notice board

Name

Item

Installation range

Attention

Inches

Input signal mode

7.1

in-d

Decimal point position indicator

7.1

u-r

Lower range

-1999 -9999

7.1

Tr

Range above

-1999 -9999

7.1

In-A

Value not Edited

-1999 -9999

8

Fi

Value Edit full scale

0.500~1.500

8

Lieutenant

Time Digital filterunchanged

1 ~ 20

8

LA

Cold junction offset value Edit

-99-99

8

OA1

Select the alarm setting code

6.2

get out

Replace error

-1999 -9999

★

-no no

The output mode is transmitted back and forth

7.3

Ba-L

Lower retransmission output range

-1999 -9999

7.3

Ba-H

Upper range of retransmission output

-1999 -9999

7.3

Ba -A

The unmodified value of the retransmitted result

-500-500

7.3

BAFi

Value Corrects the full scale of the retransmission result

0.500~1.500

7.3

Name

Attention

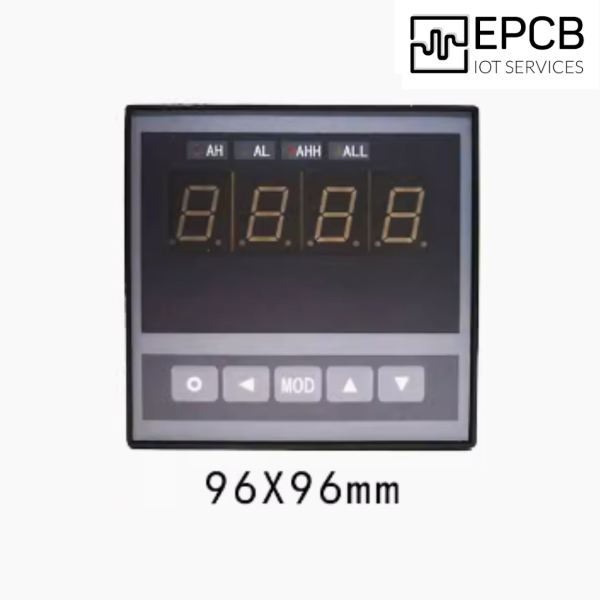

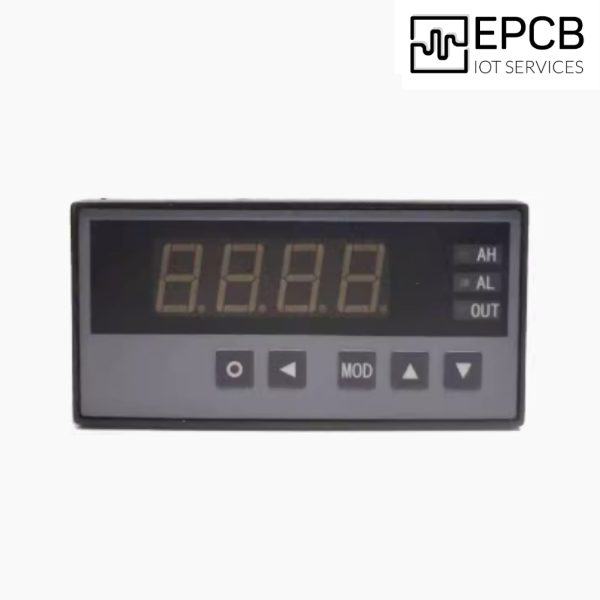

Display window

1 display window of the measured value

 Measured value indicator.
 Indicates the symbols and values ​​of parameters in parameter setting mode.
  The decimal point of the last digit is the write symbol.

2 Indicator lights

 Alarm status indicator at each alarm point.

Operation key

3 KEY SETUP

 In measurement mode, hold down the key for more than 2 seconds to enter setup mode.
 In setup mode, hold down the key for more than 2 seconds, when the parameter indication is displayed to enter the next group of parameters or return to measurement mode.
 In setup mode, press the key once when the parameter sign is displayed to change the next parameter of the same parameter group.
 In setup mode, press the key once when displaying the parameter's content to save Modified parameters.


4 keys <

 There is no effect in measurement mode.
 In setup mode:
1 executes the original parameter values;
2 moves modified digits.


5 _{Locks ^}

 There is no effect in measurement mode.
 Increase the parameter value or change the setting mode in the Mode setting

6 V key.

 There is no effect in measurement mode.
 Decrease the parameter value or change the setting mode in the Mode setting
