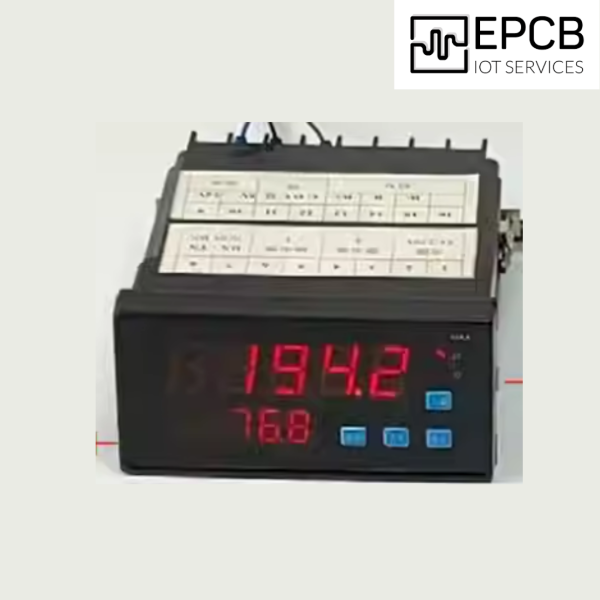

Đồng hồ LED hiển thị giá trị cảm biến dịch chuyển đa năng thiết bị dùng để đo và hiển thị giá trị đo được hoặc hiển thị giá trị tham số. Thiết bị có thể cài đặt cảnh báo ở 4 mức khác nhau. Đồng hồ có dải đo và hiển thị rộng từ -99999 đến 99999, và hỗ trợ nhiều chân IO để kết nối thích hợp ứng dụng trong các hệ thống công nghiệp khác nhau.
Tính năng Đồng hồ LED hiển thị giá trị cảm biến dịch chuyển đa năng:
- Khớp với thang đo điện trở, chiết áp.
- Hiển thị LED kép 5 chữ số, phạm vi hiển thị là -99999 ~ 99999.
- Độ ổn định cao, khả năng chống nhiễu tốt.
- Sai số 0,05% FS, tốc độ đo có thể điều chỉnh từ 5 đến 200 lần mỗi giây.
- Có các nút nhấn để tùy chỉnh thiết bị.
- Chức năng điều chỉnh đa điểm.
- Tùy chọn báo động bao gồm sáu chế độ báo động cơ bản: Giới hạn trên của giá trị đo, giới hạn dưới của giá trị đo, giới hạn trên của độ lệch, giới hạn dưới của độ lệch, giới hạn trên của giá trị tuyệt đối của độ lệch, giới hạn dưới của giá trị tuyệt đối của độ lệch, và bốn chế độ báo động chờ: Giới hạn trên và giới hạn dưới của độ lệch chờ.
- Kết quả cho thấy độ ổn định và khả năng chống nhiễu được cải thiện so với XSA.
Thông số kỹ thuật Đồng hồ LED hiển thị giá trị cảm biến dịch chuyển đa năng:
Specification | Rating/Condition | |||
Alarm Output | Size 160 × 80 | T1 ~ T4 | Relay outputs for alarm points 1 to 4; all SPDT contact relays | 250V AC/3A Resistive load |
Size 96 × 48 | T1 ~ T2 | Relay outputs for alarm points 1 & 2; both are SPDT contact relays | ||
T3 | The relay output of alarm point 3 is a SPST contact relay. | |||
Size 48 × 48 | T1 | Relay output of alarm point 1 is SPST contact relay (When T1 is selected, the communication or retransmission analog output function is available) | ||
T2 | Relay output of alarm point 2, SPST contact relay (when T2 is selected, the communication and retransmission analog output functions are not available) | |||
Digital Input | K1 | Digital input 1 (For devices with a size of 160 × 80 or 96 × 48, when K1 is selected, the communication or retransmission analog output function is available; for devices with a size of 48 × 48, K1 input is invalid) | ||
Analog Output | A1 | Current output (4 ~ 20) mA, (0 ~ 10) mA, (0 ~ 20) mA | Optical isolation; Resolution: 1/3000; Load capacity: 600 Ω | |
A2 | Voltage output (0 ~ 5)V, (1 ~ 5)V | |||
A3 | Voltage output (0-10)V | |||
Communication Interface | S1 | RS232 | Optical isolation, Response time: <500 μs (tested); Software selectable protocol (tc-ascii or Modbus-RTU) | |
S2 | RS485 | |||
power supply | V0 | 100 ~ 240V AC (50/60Hz) | ||
V1 | 10-24V AC 50/60Hz;10-24V DC |
Kích thước Đồng hồ LED hiển thị giá trị cảm biến dịch chuyển đa năng:
Mô tả chức năng các phím:
No. | project | describe |
1 | Main display | Display measured values (measurement mode) Display parameter values (configuration mode) |
2 | Secondary Display | Displays the contents controlled by the parameters (such as units, alarm values) diS2 (measurement mode) Displays parameter values (configuration mode) |
3 | Alarm output indicator | Indicates the status of the alarm point |
4 | Setting Sets | In measurement mode: press and hold this button for more than 2 seconds to enter configuration mode. In configuration mode: when the parameter symbol is displayed, press and hold this button for more than 2 seconds to select the next parameter category; when the parameter symbol is displayed, press this button to select the next parameter; when modifying the parameter value, press this button to save the changed parameter. |
5 | Left ▼ | In configuration mode: When the parameter symbol is displayed, press this button to display the parameter value; when modifying the parameter value, press this button to select the number to be modified. |
6 | Up ▲ | In measurement mode: press this button to shift the measured value, the preferred value will be displayed (can be used to enable/disable data retention function during power failure); press this button for more than 2 seconds to restore the reset point to the measured value. In configuration mode: when a parameter symbol is displayed, press this button to select the previous parameter (press and hold this button to select the first parameter of this category); when modifying a parameter value, use this button to increase the value. |
7 | Down ▼ | In measurement mode: Press and hold this button for more than 1 second to reset the peak and valley values to the current total value. In configuration mode: When a parameter symbol is displayed, press this button to select the previous parameter (press and hold this button to select the first parameter of this category); when modifying a parameter value, use this button to decrease the value. |
