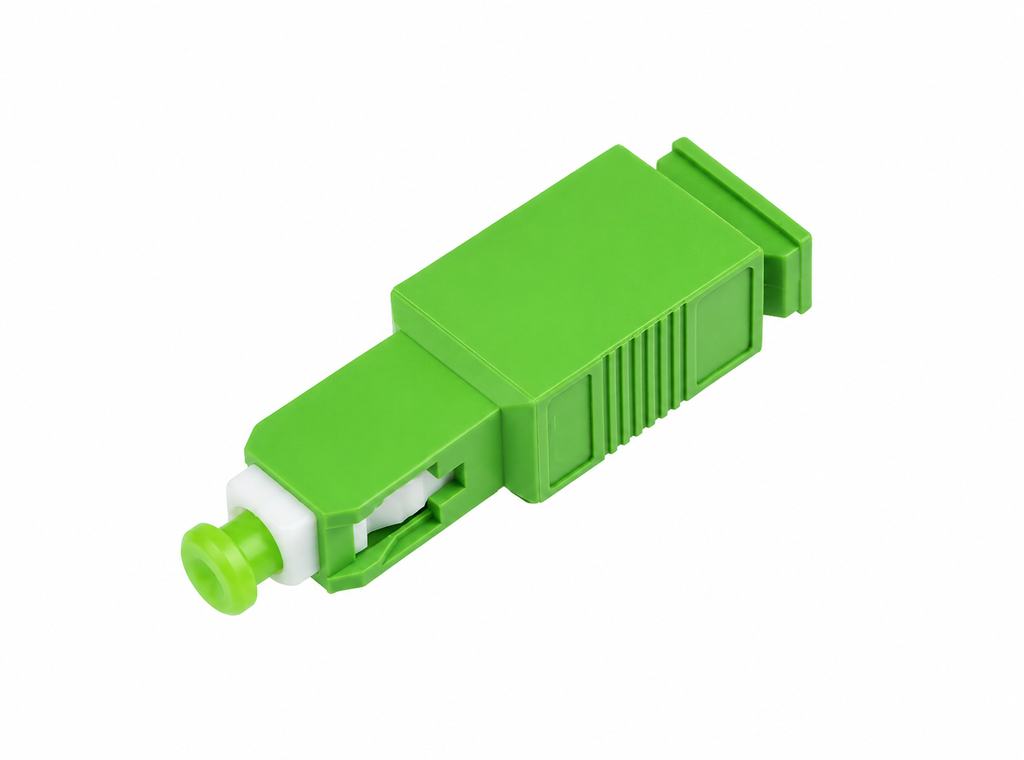

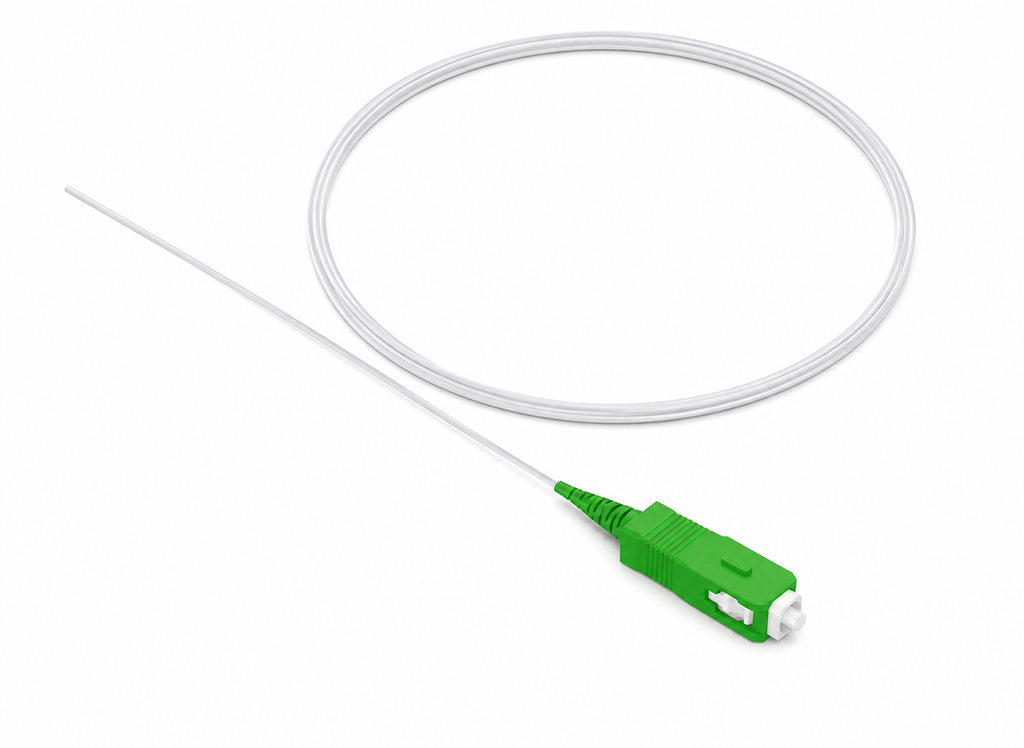

Product Overview
The 1650nm FBG Reflector is based on Fiber Bragg Grating (FBG) technology, featuring wide bandwidth, high stability and low insertion loss.
The working principle is simple: when the optical monitoring system transmits a specific wavelength range through the optical network, the FBG Reflector selectively reflects its intrinsic wavelength band (1645–1655nm). If the monitoring system successfully detects the reflected wavelength, the optical fiber link is confirmed to be operating normally.
Key Features
- High stability and reliability
- Remote real-time fiber monitoring
- Low insertion loss
Application

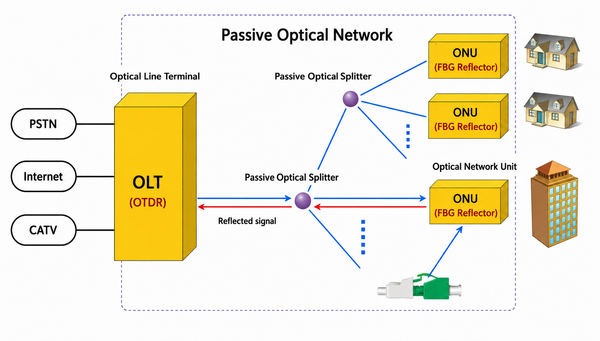

Detection and maintenance of Passive Optical Network lines
Technical Specifications
No. | Parameters | Unit | Min. | Typ. | Max. | Remark |
1 | Pass band | nm | 1260 - 1625 | |||
2 | Reflect band | nm | 1645 - 1655 | |||
3.1 | IL (1260nm-1360nm) | dB | 1 | |||
3.2 | IL (1460nm-1625nm) | dB | 1.2 | |||
3.3 | IL (REFLECT BAND) | dB | 20 | 1650 ± 5nm | ||
4.1 | RL (1260nm-1360nm) | dB | 30 | |||
4.2 | RL (1460nm-1625nm) | dB | 30 | |||
4.3 | RL (REFLECT BAND) | dB | 1.0 | 1650 ± 5nm | ||
5 | PDL (1260nm-1610nm) | dB | 0.4 | Excluding 1360 ~ 1460nm | ||
6 | Ripple | dB | 0.6 | RL | ||
7 | TDL (1260nm-1610nm) | dB | 0.5 | Excluding 1360 ~ 1460nm | ||
8 | Max Optical Power Handling | dBm | 27 |

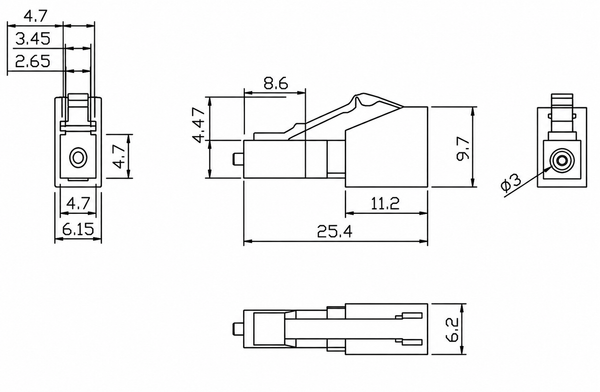

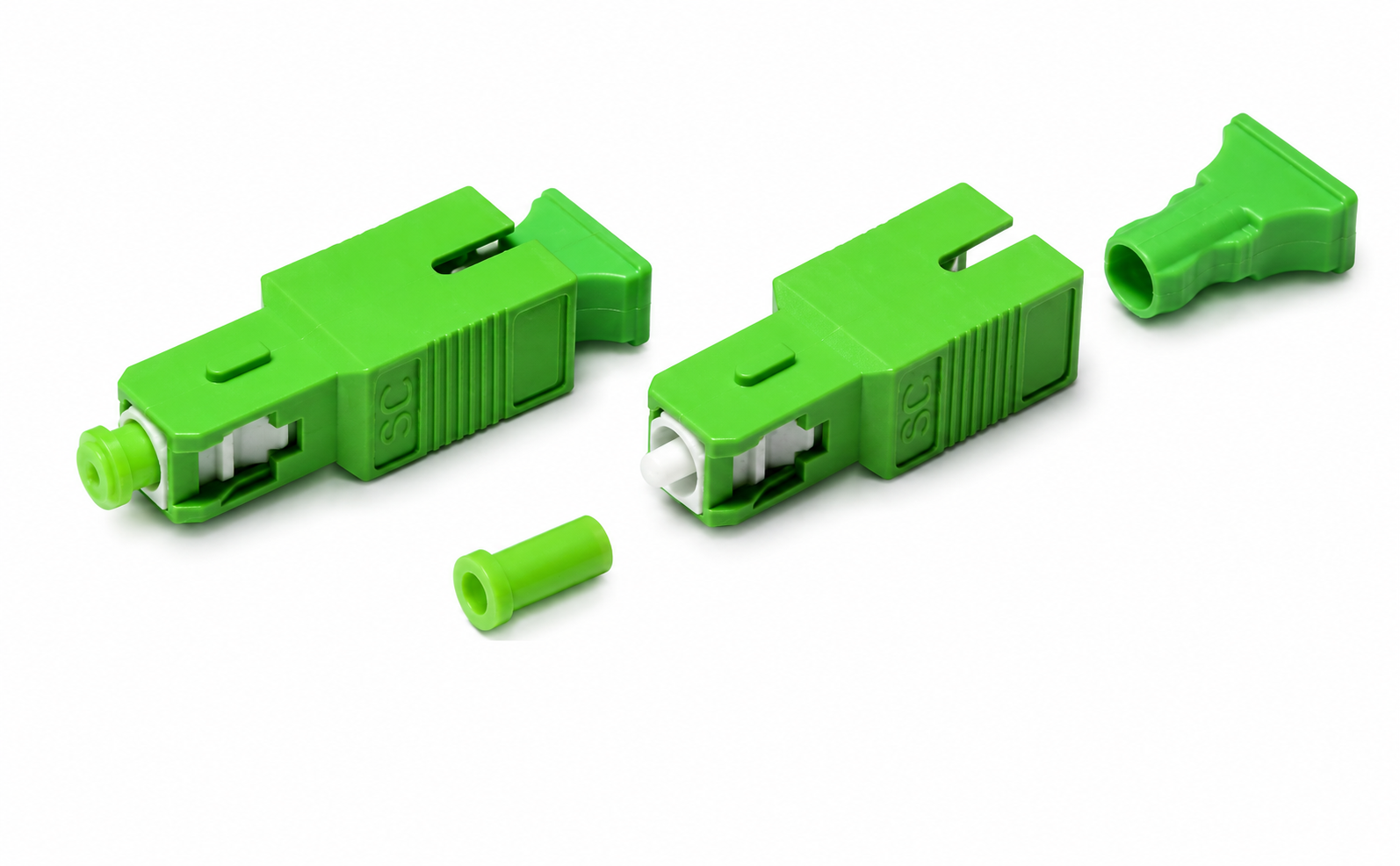

Structure
Working/Storage Conditions
Parameter | Specification | Unit |
Working temperature | -25 ~ +65 | °C |
Working humidity | 5 ~ 95 | %RH |
Storage temperature | -40 ~ +85 | °C |
Storage humidity | 5 ~ 95 | %RH |
