Description
The FWDM 1650nm Monitoring Filter is designed for Optical Fiber Cable Line Monitoring Systems and PON Data Systems. Using Thin Film Filter (TFF) technology, it separates OTDR monitoring wavelengths (1600–1670nm) from PON service wavelengths (1260–1580nm), allowing both monitoring and service signals to operate on the same optical fiber.
Featuring low insertion loss, high channel isolation and stable performance, the FWDM is suitable for FTTH, GPON, XGS-PON, CATV and OTDR monitoring applications.
Key Features
- Wide bandwidth
- Low insertion loss
- High channel isolation
- Exceptional reliability and stability

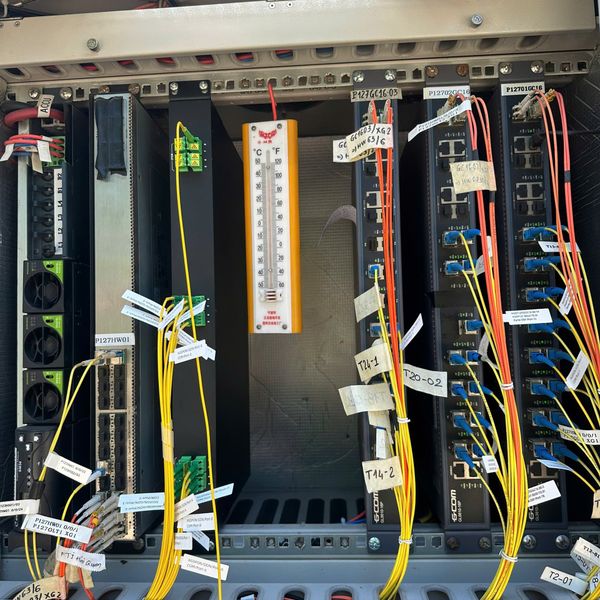

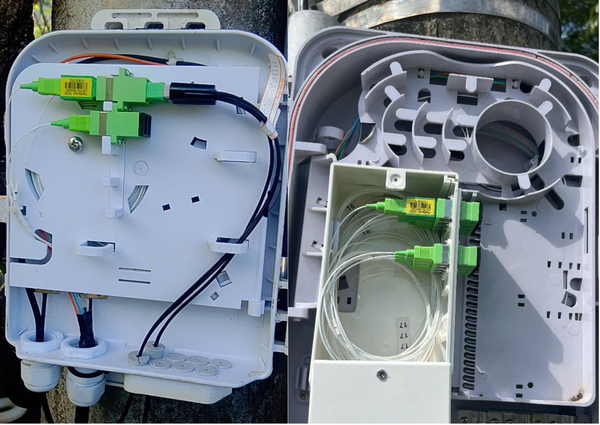

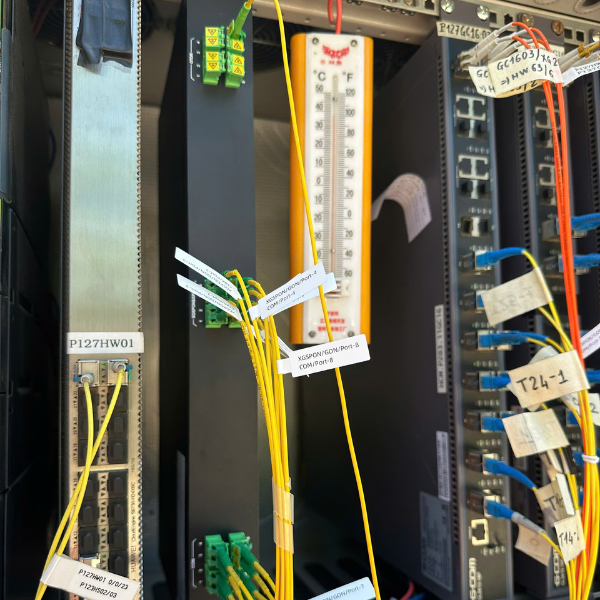

Applications
- Optical amplifiers
- CATV
- OTDR
Specifications
Parameter | Specification | Parameter | Specification |
Wavelength | TX1260-1580 RX1600-1670nm | Technology | TFF (Thin Film Filter) |
Passband | 1600 ~ 1670nm | Reflection | 1260 ~ 1580 |
Passband ripple | ≤ 0.30dB | IL @ Passband | ≤ 1.0dB |
Reflection band ripple | ≤ 0.20dB | IL @ Reflection | ≤ 0.80dB |
Transmission isolation (adj channel) | ≥ 30dB | Transmission isolation (non-adj channel) | ≥ 50dB |
Reflection isolation | ≥ 15dB | Polarization dependent loss | ≤ 0.1dB |
Polarization mode dispersion | ≤ 0.2ps | Thermal Stability | ≤ 0.005N |
Directivity | ≥ 50dB | Return loss | ≥ 45dB |
Optical power handling | ≤ 500mW | Temperature | Operating: -40 to 85°C Storage: -40 to 85°C |
Fiber type | SMF-28e | Package dimension | 440 × 230 × 44mm |

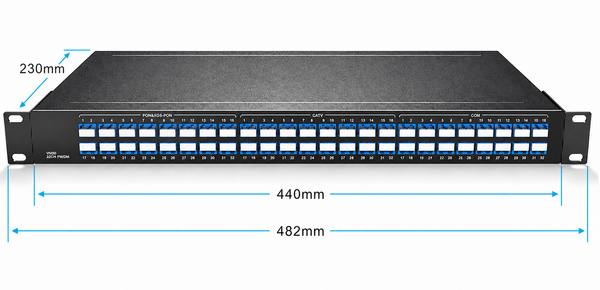

Dimensions Drawing
Ordering Information
Model | Description |

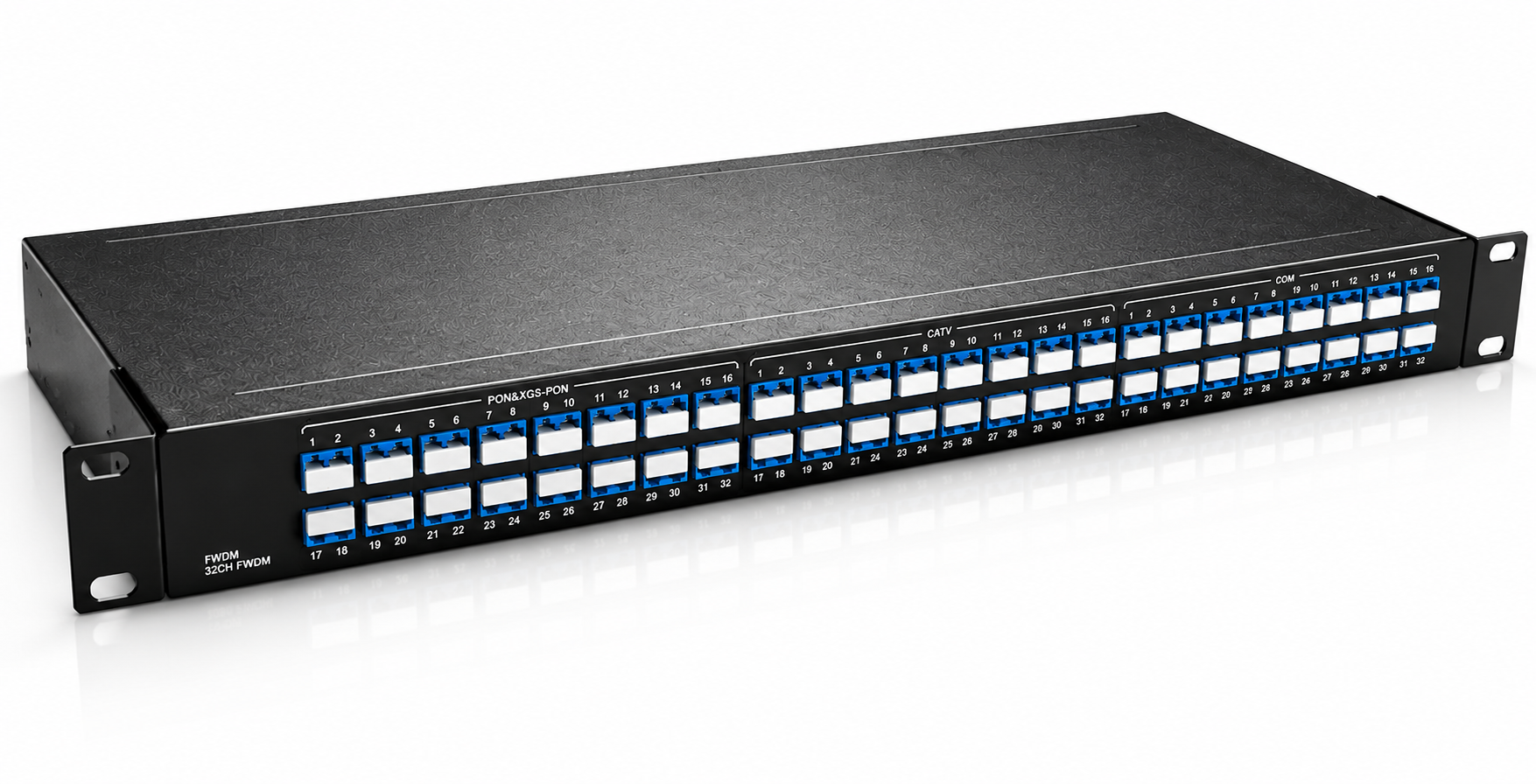

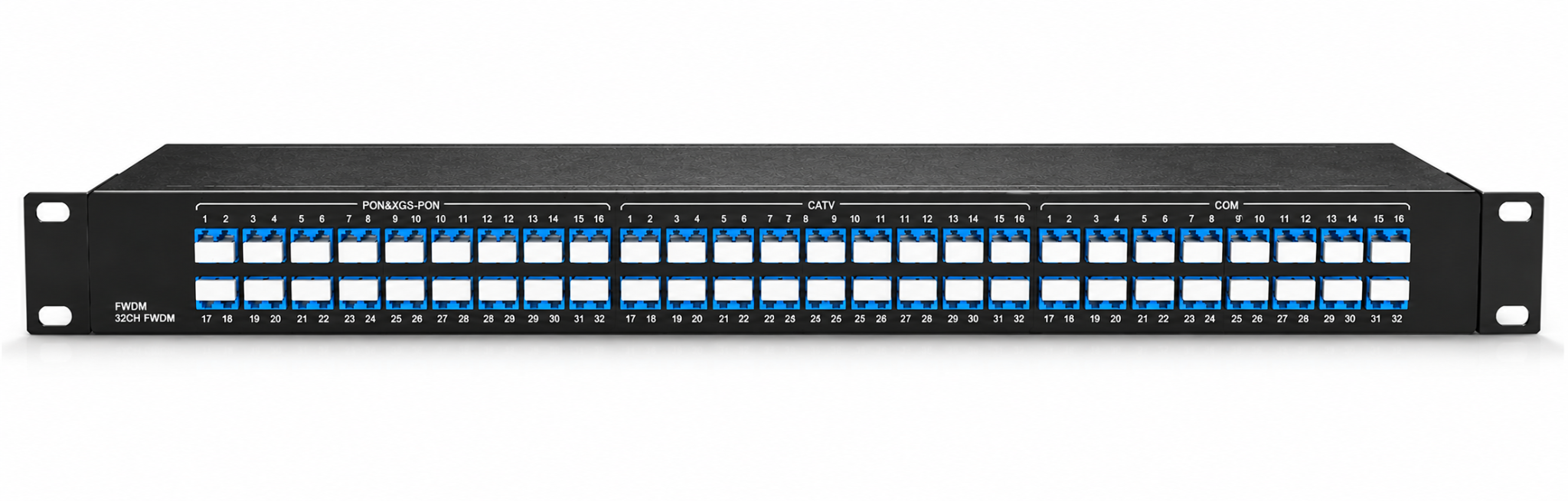

32FW-1U01A-T2658R6076 | 32-Channel FWDM, TX 1260 - 1580nm, RX 1600 - 1670nm LC/APC Auto-Shutter, 1U Rack Mount |
