Name: Bộ chuyển mạch quang MEMS ma trận 4×4 (4x4 Matrix Optical Switch)
Brand: khác
SKU: 1075350741
Availability: OutOfStock

Bộ chuyển mạch quang MEMS ma trận 4×4 (4x4 Matrix Optical Switch)

Sản phẩm: (Pre oder) Vui lòng liên hệ 0367.939.867 để đặt hàng
Số lượng

Giá chưa bao gồm VAT

ED-OSW-01

Liên hệ

Chi tiết sản phẩm

Product Overview

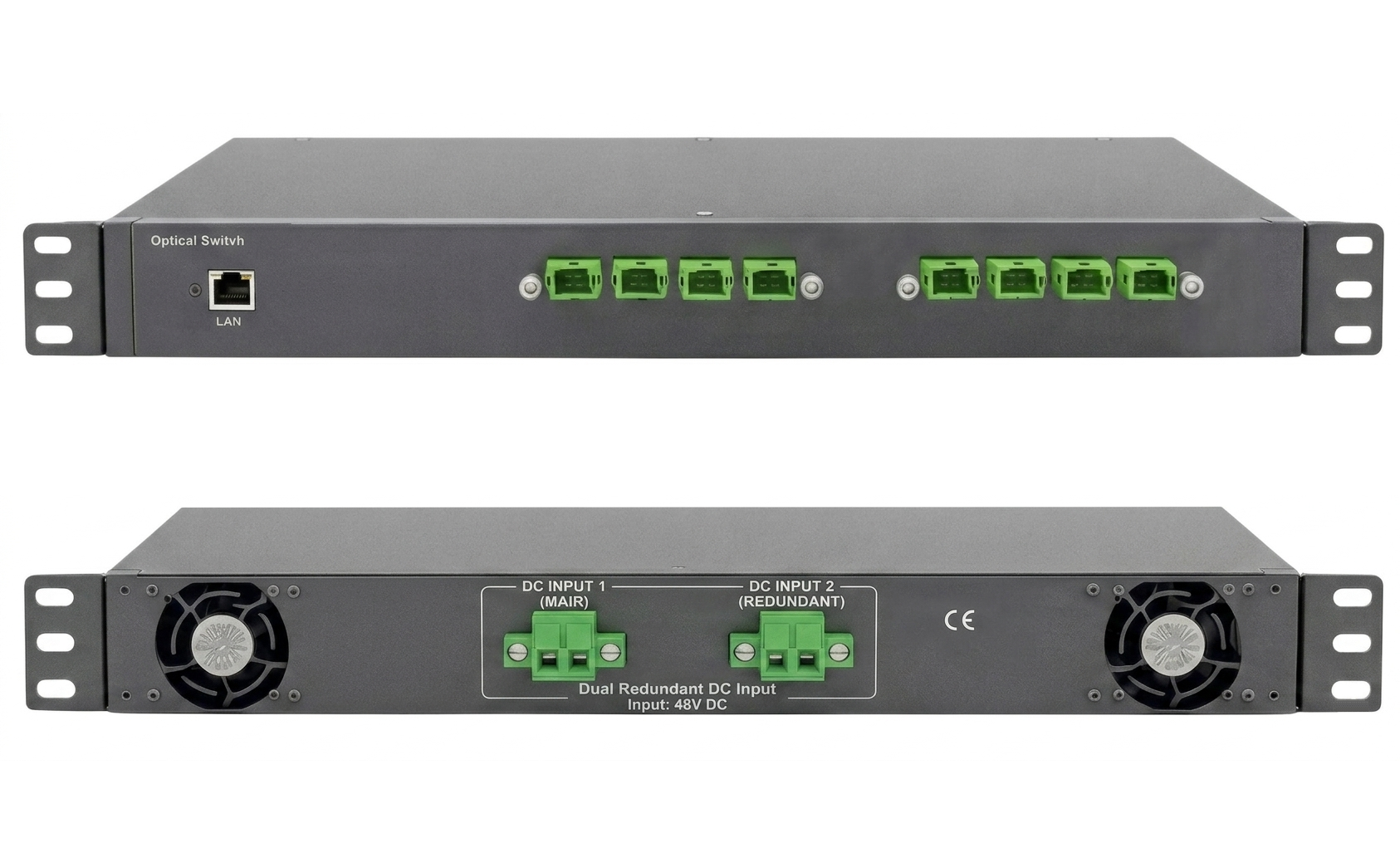

The ED-OSW-01 4×4 Matrix MEMS Optical Switch is a high-performance optical switching solution designed for fiber optic network routing, automatic optical measurement, and remote optical network monitoring applications.

Based on MEMS (Micro-Electro-Mechanical Systems) technology, the switch provides transparent optical signal transmission with low insertion loss, excellent repeatability, and long operational lifetime. The system supports both Ethernet (RJ45) and RS232 remote control, enabling seamless integration into laboratory, testing, and telecommunication environments.

Key Features

4×4 Matrix MEMS Optical Switch
High Reliability
High Stability
Configurable Automatic Channel Scanning
Adjustable Automatic Scan Interval
Remote Management via RJ45 Ethernet and RS232
LCD Display Panel for Convenient Operation
Transparent Optical Signal Transmission
Supports SNMP Protocol

Applications

The ED-OSW-01 is suitable for a wide range of fiber optic applications, including:

Fiber In The Loop (FITL)
Automated Measurement Systems
Optical Network Remote Monitoring
Fiber Cable Monitoring and Maintenance

Technical Specifications

Parameters	Unit	Specifications
Operating Wavelength	nm	1260~1650 for SM, 850/1310 for MM
Insertion Loss	dB	M≤8, N≤8 ≤2.3
		M≤16, N≤16 ≤2.7
		M≤32, N≤32 ≤3.3
		M≤64, N≤64 ≤3.7
WDL	dB	≤0.6
PDL	dB	≤0.3
Return Loss	dB	SM ≥45, MM ≥30
Crosstalk	dB	SM ≥50, MM ≥30
Repeatability	dB	≤ ±0.1
Switching Time	ms	≤15
Durability	times	≥10 billion
Optical Power	mW	≤500
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45 & RS232 or customized
Protocol	/	SNMP (Simple Network Management Protocol)
Working Power Supply (Plug type)	V	AC220V (50/60Hz) or DC: 36V~72V (2 Input DC Power Terminal)
Operating Temperature	°C	-10 ~ +60
Storage Temperature	°C	-40 ~ +85
Operating Humidity	%	5 ~ 95

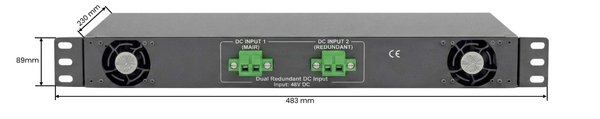

Package Dimension	mm	1U L483 × W230 × H44.5 (Up to 16 channel), customization is available.
Package Dimension	mm	2U L483 × W230 × H89 (Up to 32 channel), customization is available.
